Install the wiring harness section of the transmission wiring harness
Installing the wiring harness section for the right transmission wiring harness

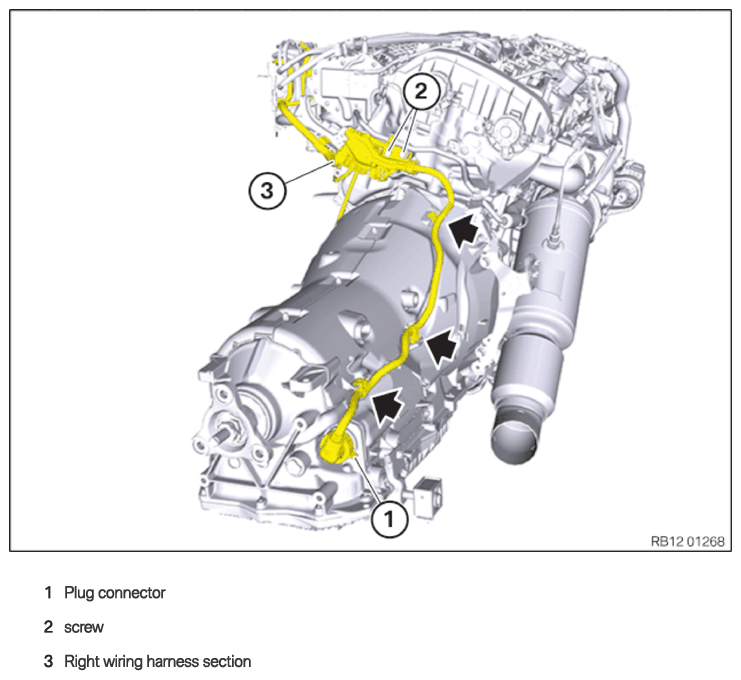

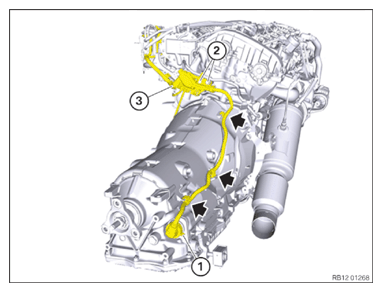

Wiring harness section of the transmission wiring harness, right
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.
- Feed in and install the wiring harness section of the transmission wiring harness (3) .
- Tighten down screws (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Wiring harness section for transmission to cylinder head | ||
|---|---|---|
| M6x16 | Tightening torque | 8 Nm |
- Secure the clamps (arrows).
- Connect and lock the connector (1)
.
The connector must engage audibly.
Installing the wiring harness section of the transmission wiring harness on the left

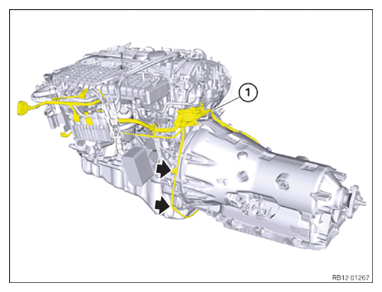

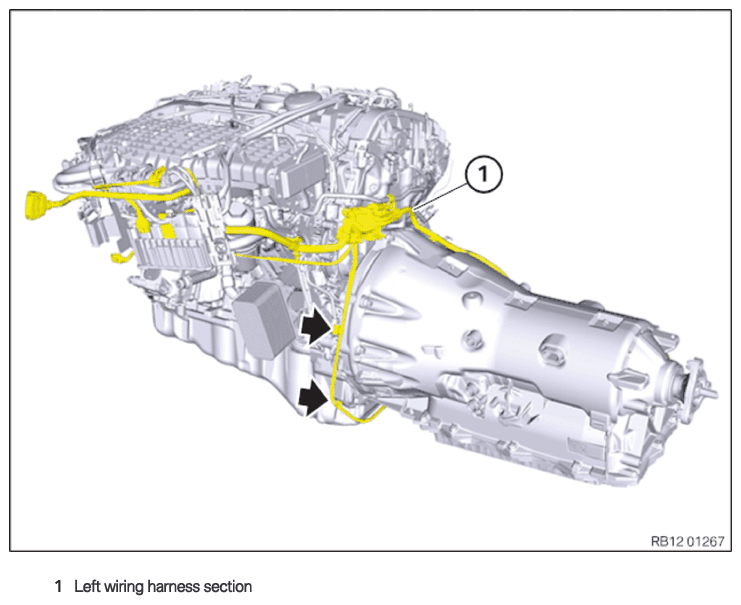

Wiring harness section of the transmission wiring harness, left
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.
- Guide in the wiring harness section of the transmission wiring harness (1) and install.
- Secure the clamps (arrows).

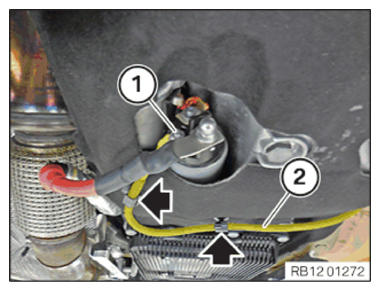

- Insert and install terminal 50 (2) .
- Tighten nut (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Terminal 50 to starter motor | ||
|---|---|---|
| M6 hexagon nut | Tightening torque | 7 Nm |
- Secure the clamps (arrows).

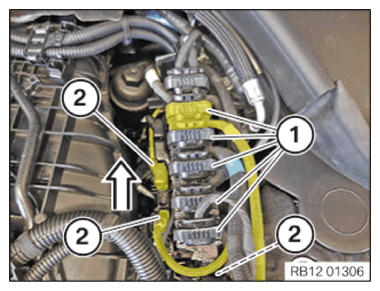

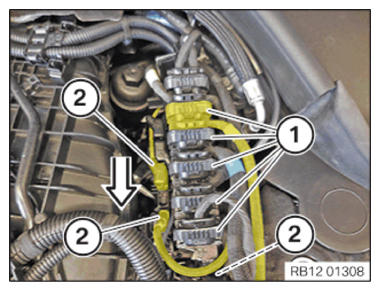

- Connect connector (1)
in the direction of the arrow and lock.
All connectors (1) must engage audibly.

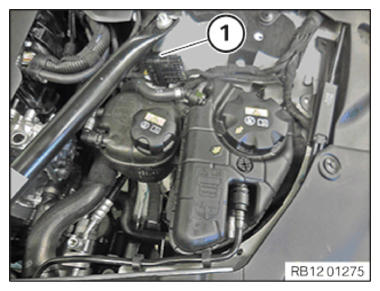

- Connect and lock the connector (1)
.
The connector (1) must engage audibly.
- Slide the cover (1) in the direction of the arrow into the guide (2) and install it.
- Lock clamp (3)
.
The clamp (3) must engage audibly.
