65 24 020 Removing and installing/replacing blocking circuit (left or right)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TRIM PANEL FOR ROOF PILLAR AT REAR .

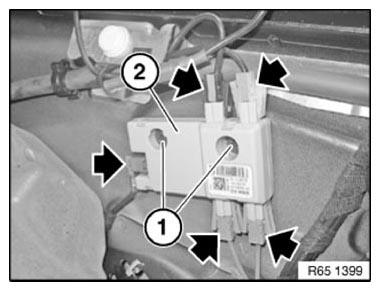

Release screws (1).
Unlock plug connections and disconnect.
Remove blocking circuit (2) from C-pillar.
Installation:
Position blocking circuit (2) so that positioning pin on back engages in associated hole.
