65 77 720 Removing and installing (replacing) left B-pillar sensor from 09/11
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
NOTE AIRBAG SAFETY INSTRUCTIONS
!
Incorrect handling can activate airbag and cause injury.
Incorrect handling can activate airbag and cause injury.
Necessary preliminary tasks:
- Disconnect BATTERY CABLE .
- Remove TRIM PANEL FOR DOOR POST .

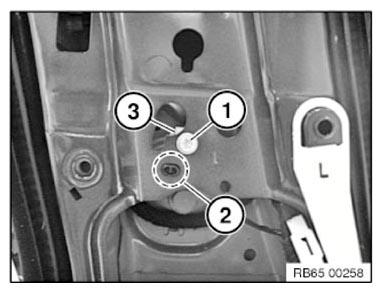

Release screw (1).
Tightening torque 65 77 3AZ .
Feed out the B-pillar sensor (3) downwards.
Unlock associated plug connection and disconnect.
Installation note:
Make sure B-pillar sensor (3) is correctly seated in guide (2).
