41 11 565 Replace Sill In Vicinity Of Left C-Pillar (Rear Side Panel Removed) (Non-Hybrid)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Use only approved SPOT-WELDING APPARATUS for repairs.

The following new body parts are required:

Side member cover, rear
(component is included on new side wall part)

Removing sill section

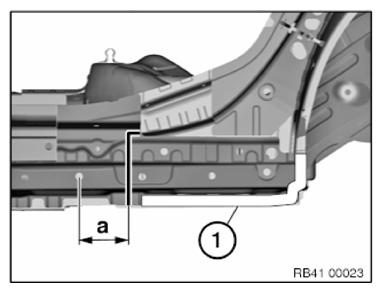

Mark severance cut in accordance with dimension and cut.

IMPORTANT: Cut outer panel only.

Dimension a = approx. 100 mm from center point of 15 mm diameter hole.

Open welded connection in area (1).

Remove the side member cover section.

Installation note:

Apply repair welding spots in area (1) to existing welding spots on new component/vehicle. This is necessary because the adhesive between the spot flanges acts as an insulator.

Weld in REINFORCEMENT PLATE at severance cut.

Fig 1: Identifying Welding Spots In Area

Courtesy of BMW OF NORTH AMERICA, INC.

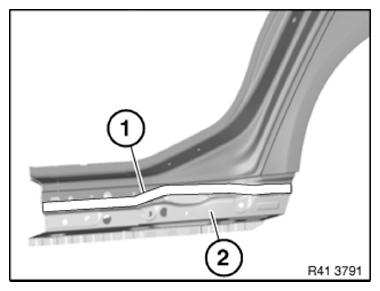

Preparation of new part:

Open welded connections in area (1).

Remove sill section (2).

Fig 2: Identifying Welded Connections In Area, Sill Section

Courtesy of BMW OF NORTH AMERICA, INC.

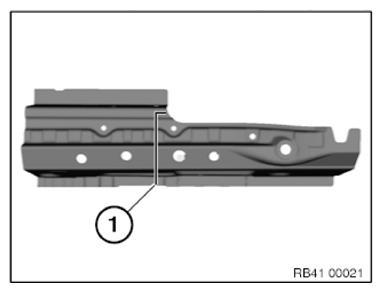

Mark severance cut (1) in accordance with vehicle and cut.

Fig 3: Identifying Sill Section Cut

Courtesy of BMW OF NORTH AMERICA, INC.

Installing sill section

Install new part and weld.
