18 31 130 Removing and installing/replacing metering unit (N57 D30 O/T 1 with SCR)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

16 1 130

IMPORTANT: Ensure adequate ventilation in the workbay!
Avoid skin contact (wear gloves)!
Avoid eye contact (safety goggles)!
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.

IMPORTANT: Maintain conditions of absolute cleanliness.
Connections and covers of lines carrying urea/water mixture must be cleaned thoroughly with water after each removal or before each installation!
Thoroughly clean the working area with water after repair work.
Use fluff-free cloths for cleaning.
Seal off connections and lines with special tool 16 1 130!
Thoroughly clean special tool with water after each use.

Necessary preliminary tasks:

Remove rear UNDERBODY PROTECTION .
All-wheel drive vehicles only:

Remove STIFFENING PLATE

Disconnect metering line (3) from metering unit (5).

Unfasten coolant hoses (4) from metering unit using UNCRIMPING TOOLS .

Release pipe clips and pull coolant hoses (4) off metering module.

Replace clamps.

Release clamp (1).

Tightening torque 18 31 10AZ .

Release plug connection (2) and pull off.

Remove metering unit.

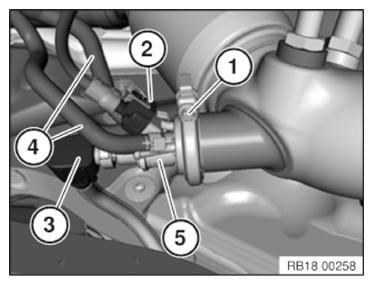

Fig 1: Identifying Coolant Hoses, Plug Connection And Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

After completing repair work:

Carry out SCR adjustment using BMW Diagnosis and Information System.

Refer to:

- Service function
-> SCR systems

-> Carry out activation and calibration
