16 11 350 Replacing tensioning straps for fuel tank

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Secure fuel tank against slipping and falling out.

Generously support the fuel tank.

Fig 1: Supporting Fuel Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Installation note:

Tightening torque 16 11 2AZ .

Remove tightening strap (2).

Fig 2: Identifying Strap And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The metal fuel tank (1) has a middle centering element!
During installation the fuel tank must be aligned with the aid of dimension (A) on the left and right centrally to the body!
Dimension (A) must be identical on the left and right sides!

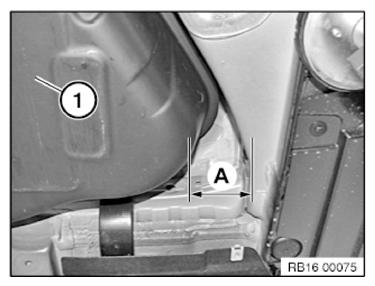

Fig 3: Identifying Fuel Tank Dimension On Left And Right To Body

Courtesy of BMW OF NORTH AMERICA, INC.
