16 11 030 Removing and installing/replacing fuel tank filler hose (N57)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Recycling
Fuel escapes when fuel lines are detached. Have a suitable collecting container ready.
Catch and dispose of escaping fuel.
Observe country-specific waste-disposal regulations.
IMPORTANT:
Ensure adequate ventilation in the place of work!
Avoid skin contact (wear gloves)!
After installation of fuel tank/prior to first engine start-up:
Avoid skin contact (wear gloves)!
After installation of fuel tank/prior to first engine start-up:
- Check ground connection at fuel filler neck to body for continuity. If necessary, clean contact surface between body and fuel filler pipe screw connection.
- Fill fuel tank with at least 5 liters of fuel.
Necessary preliminary tasks:
- Remove FUEL FILLER PIPE

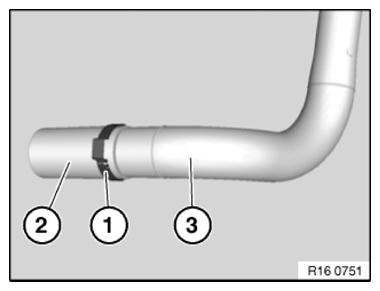

Release ear hose clamp (1).
Installation:
Replace ear hose clamp (1).
Detach filler hose (2) from fuel filler pipe (3).
