16 12 010 Removing and installing or replacing carbon canister
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear right WHEEL ARCH COVER

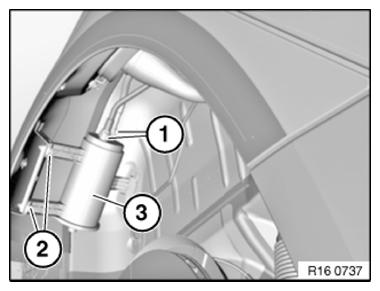

Unlock quick-release fasteners (1) and disconnect vent lines.
Release screws (2) and swing out carbon canister (3).
Installation:
Tightening torque 16 13 1AZ .
