61 31 172 Removing and installing/replacing switch for electromechanical parking brake

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

DISCONNECT NEGATIVE BATTERY CABLE (to avoid fault memory entries)
F03 only: Disconnect both battery negative cables
Remove GEAR SELECTOR SWITCH COVER

Release screws (1).

Remove switch for electromechanical parking brake (2) from cover for gear selector switch (3).

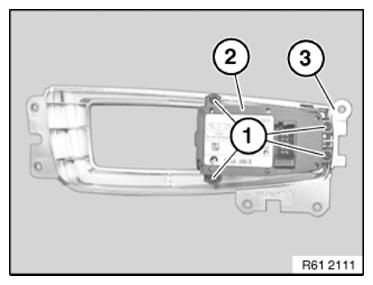

Fig 1: Identifying Gear Selector Switch, Electromechanical Parking Brake And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

DISCONNECT NEGATIVE BATTERY CABLE (to avoid fault entries)
Remove CENTER CONSOLE COVER

Release screws (1).

Remove switch for electromechanical parking brake (2) from center console trim (3).

Fig 1: Identifying Center Console Trim, Electromechanical Parking Brake And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Only for M5 with twin-clutch gearbox

Release screws (1).

Remove switch for electromechanical parking brake (2) from center console switch center (3).

Fig 2: Identifying Electromechanical Parking Brake, Center Console Switch Center Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1).

Release side catches (2).

Remove cover (3) from switch for electromechanical parking brake (4).

Fig 3: Identifying Electromechanical Parking Brake, Cover And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining elements (1) on cover (2) must not be damaged or missing.

Fig 4: Identifying Retaining Elements And Cover

Courtesy of BMW OF NORTH AMERICA, INC.
