51 45 031 Replacing instrument panel trim

Special tools required:

• 00 9 325

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

• Remove INSTRUMENT PANEL TRIM
• Change over airbag module on passenger side

Unclip trim (1) with special tool 00 9 325 from latch mechanisms and remove upwards.

Fig 1: Removing Instrument Panel Trim Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Marked retaining lugs must not be damaged.

Fig 2: Locating Instrument Panel Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

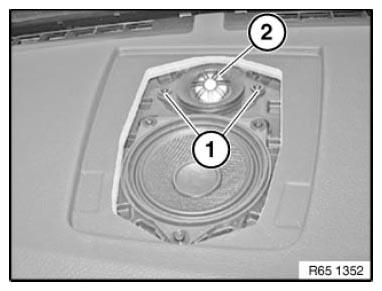

Release screws (1) on tweeter.

Fig 3: Identifying Tweeter Screws

Courtesy of BMW OF NORTH AMERICA, INC.

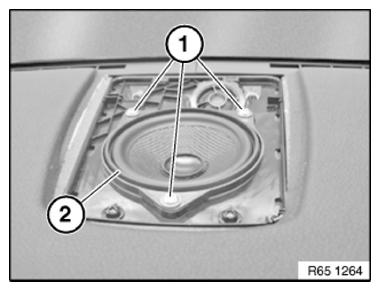

Release screws (1) on mid-range speaker (2).

Remove both speakers.

Fig 4: Identifying Mid-Range Speaker Screw

Courtesy of BMW OF NORTH AMERICA, INC.

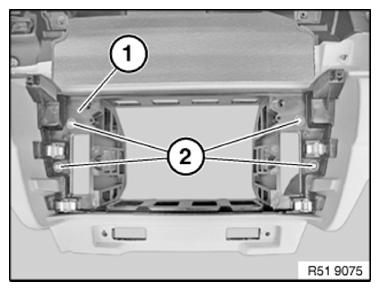

Release screws (2) on center function carrier (1).

Pull center function carrier (1) slightly forwards, then lifted it out while tilting it downwards.

Fig 5: Identifying Center Function Carrier Screw

Courtesy of BMW OF NORTH AMERICA, INC.

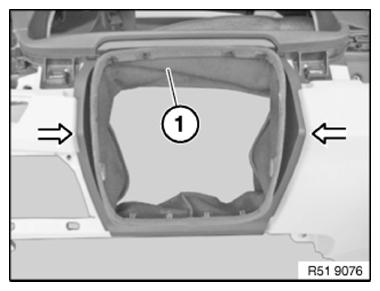

Bend steering column sleeve (1) in direction of arrow and remove.

Fig 6: Pressing Steering Column Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip left and right air ducts (1) and modify.

Fig 7: Identifying Left And Right Air Ducts

Courtesy of BMW OF NORTH AMERICA, INC.

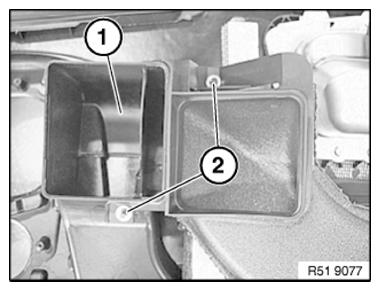

Release spring stops (2) from left and right air ducts (1).

Remove air ducts (1).

Installation:

Make sure air ducts (1) are correctly seated.

Fig 8: Identifying Air Ducts Spring Stops

Courtesy of BMW OF NORTH AMERICA, INC.

Change over remaining fixings (3).

If necessary, replace RESILIENT SEALING TAPE  for VIN number inspection window.
