51 41 001 Replacing left or right front door trim panel

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Depending on equipment specification:

Modify Power window switch . See 61 31 118 REPLACING FRONT PASSENGER POWER WINDOW SWITCH or 61 31 117 REMOVING AND INSTALLING/REPLACING POWER WINDOW SWITCH (DRIVER'S SIDE)
Modify OPERATING UNIT FOR SUPPLEMENTARY SEAT FUNCTIONS
Modify FOOTWELL LIGHT
Modify OPTICAL FIBRE UNDER DECORATIVE STRIPS
Modify OPTICAL FIBRE STORAGE COMPARTMENT
Modify MID-RANGE SPEAKER
Modify INSIDE DOOR OPENER
Punch CONTOUR FOR SEAT MEMORY SWITCH INTO DOOR TRIM PANEL .
Modify OPERATING FACILITY FOR SUPPLEMENTARY SEAT FUNCTIONS

Modify:

Locking button trim (1).
Retaining clips (2)
Crashpad (3)
Retaining clips (4)
Handle (5)

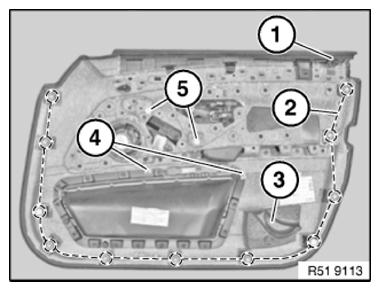

Fig 1: Identifying Door Retaining Clips, Handle And Crashpad
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If optional optical fibre is fitted, break off pin (1) in map pocket (2) if necessary.

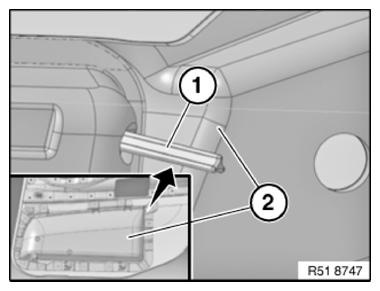

Fig 2: Identifying Map Pocket Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles with versions up to 07/2013 have a two-pin connector for the LED module.

When fitting a door trim panel with three-pin LED module, the connector housing at the wiring harness must be replaced.

Connection at the new 3-pin connector:

Pin 1 = GND (31)

Pin 2 = AMBL_1 ambient light 1 (58)

Pin 2 = remains free
