0490712 111110 Device AM

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For pressure-testing cylinder head

Consisting of:

0490713 Rail
NOTE: (Cover rail with spacer buffer)
0490714 Screw
NOTE: (screws (14 x))
0490715 Connection
NOTE: (Air connection)

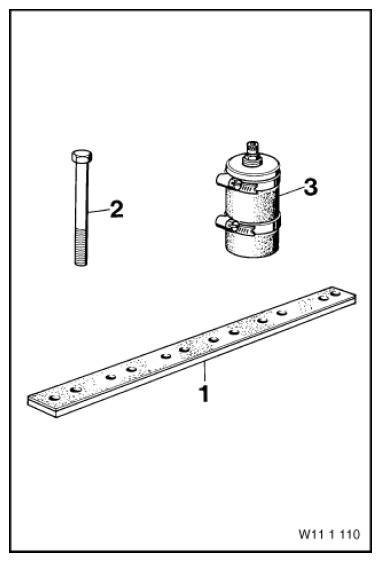

Fig 1: Identifying Device (0490712)
Courtesy of BMW OF NORTH AMERICA, INC.
