0490593 110160 Compression tester AM

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Replaced by: 83300490613

NOTE: (Compression recorder) manufacturer VDO - Replaced by 11 0 220 (0 490 613)

Consisting of:

0490594 Card
NOTE: (Cards) For compression pressure inscriber Discontinuation and replaced by 11 0 220 (0 490 613)
0490595 Pressure gauge
NOTE: Compression pressure inscriber Discontinuation and replaced by 11 0 220 (0 490 613)
0490596 Guard
NOTE: (Rubber protection) Still available as replacement Discontinuation and replaced by 11 0 220 (0 490 613)
0490597 Line
NOTE: Discontinuation and replaced by 11 0 220 (0 490 613)
0490598 Adapter
NOTE: (test adapter for gasoline engine: all, except M70 Discontinuation and replaced by 11 0 220 (0 490 613)
0490599 Adapter
NOTE: (test adapter for gasoline engine: M70 Discontinuation and replaced by 11 0 220 (0 490 613)

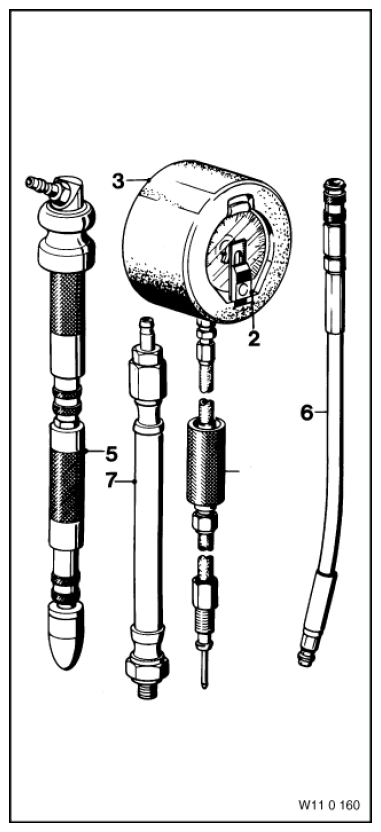

Fig 1: Identifying Compression Tester (0490593)
Courtesy of BMW OF NORTH AMERICA, INC.
0490600 Adapter
NOTE: (Test adapter extension) Discontinuation and replaced by 11 0 220 (0 490 613)
