11 33 062 Removing and installing/replacing all rocker arms (N57 Diesel)

Special tools required:

• 11 4 480 .
• 11 5 320 .
• 11 6 480 .

Necessary preliminary tasks:

• Remove CYLINDER HEAD COVER .

Crank engine with special tool 11 6 480 to TDC firing position of cylinder no. 1.

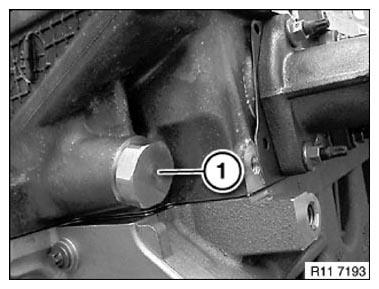

Fig 1: Cranking Engine Using Special Tool (11 6 480)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective cap of timing case cover.

Block crankshaft in firing TDC position of cylinder no. 1 using special tool 11 5 320 .

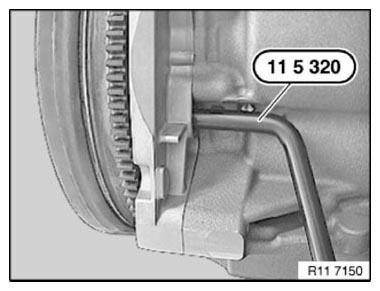

Fig 2: Blocking Crankshaft In Firing TDC Position Of Cylinder No. 1 Using Special Tool (11 5 320)

Courtesy of BMW OF NORTH AMERICA, INC.

Release CHAIN TENSIONER (1).

Tightening torque: 11 12 2AZ .

Fig 3: Identifying Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove camshaft sprocket from assembled shaft and feed out of timing chain.

Place timing chain in cylinder head.

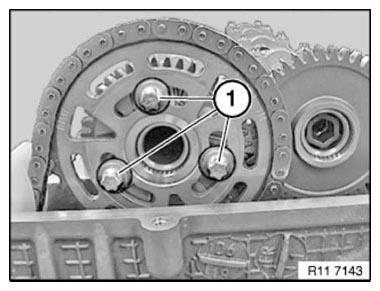

Fig 4: Identifying Screws Of Camshaft Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

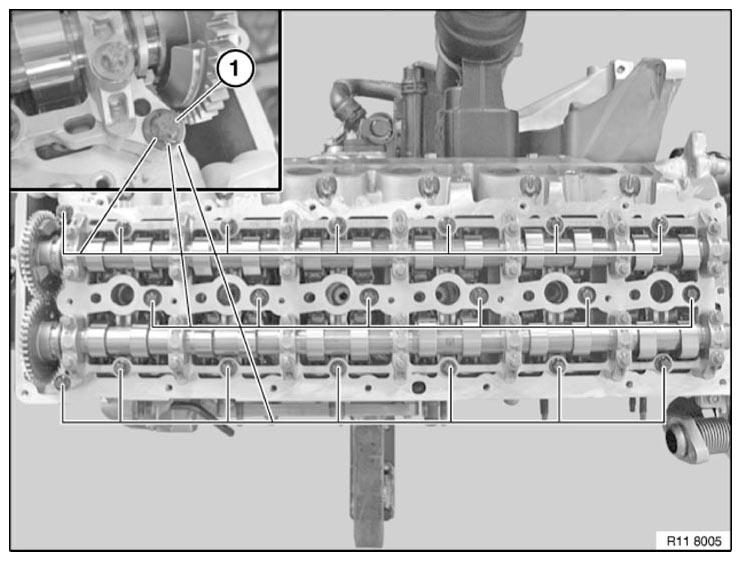

Fig 5: Identifying Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all rocker arms (1) and lay down on special tool 11 4 480 in an orderly manner.

Installation note:

Already used rocker arms (1) may only be reused in the same position.

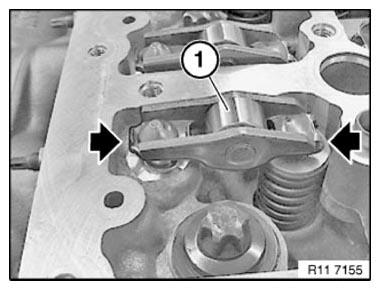

Fig 6: Identifying Roller Cam Follower

Courtesy of BMW OF NORTH AMERICA, INC.

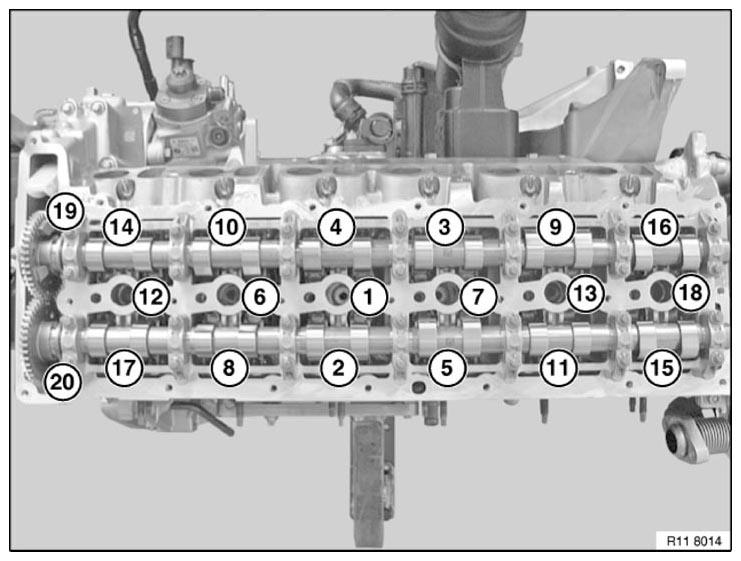

Fig 7: Camshaft Carrier Bolts Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure roller cam followers are in correct installation positions.

Place camshaft carrier on cylinder head.

Tighten bolts in sequence (1 to 20).

Tightening torque: 11 31 3AZ .

Adjust VALVE TIMING .

Assemble engine.
