11 33 050 Removing and installing/replacing all rocker arms (N52)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 11 4 480 .
Necessary preliminary work:
- Remove CYLINDER HEAD COVER .
- Remove INTERMEDIATE LEVER .
- Remove EXHAUST CAMSHAFT .
IMPORTANT:
Rocker arms (1) are divided into bearing categories.
The tolerance classes are marked according to the graphic in numbers from 1 to 5.
Already used rocker arms (1) may only be reused in the same position.
The tolerance classes are marked according to the graphic in numbers from 1 to 5.
Already used rocker arms (1) may only be reused in the same position.
Detach rocker arms (1) from HVCA element and remove.
Set down all rocker arms (1) in neat order in special tool 11 4 480 .
Installation note:

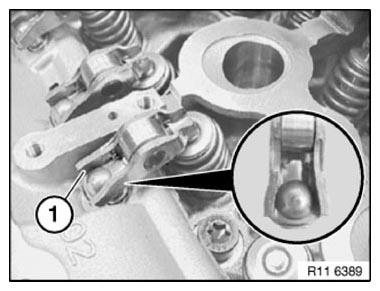

Before installing exhaust camshaft or intermediate levers, make sure rocker arms (1) are correctly seated.

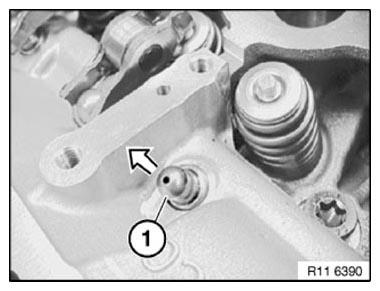

Remove HVC element (1) in direction of arrow.
Installation note:
If hydraulic valve clearance compensating elements (1) are reused, they must be placed together with rocker arms in neat order in special tool 11 4 480 .
Assemble engine.
Check function of DME; if necessary, readjust uniform mixture distribution.
