11 34 560 Replacing all valve stem seals (S63)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Risk of damage to sealing lip on valve stem seal.
Fit new valve stem seals only when all valves have been installed.

Necessary preliminary tasks:

Remove all VALVE SPRINGS .

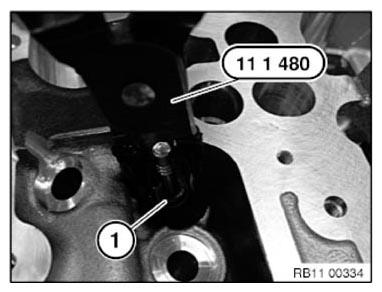

Pull off valve stem seal (1) with special tool 11 1 480 .

Simultaneous turning and pulling will pull off the valve stem seal.

Fig 1: Pulling-Off Valve Stem Seal With Special Tool (11 1 480)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Lubricate valve stem with oil and insert valve.

Installation sleeve 11 1 380 is included in the delivery specification for the valve stem seals.

Fit special tool 11 1 380 .

Coat new valve stem seal (1) with oil and install.

Fig 2: Fitting Special Tool (11 1 380)

Courtesy of BMW OF NORTH AMERICA, INC.

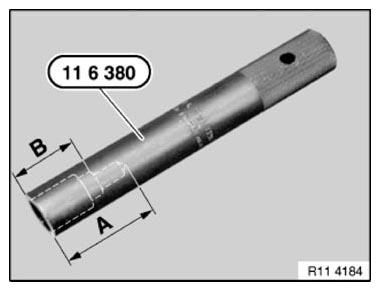

NOTE: For use on the S63TU engine, the special tool 11 6 380 must be re-machined according to the sketch with a 6.2 mm drill bit dia. to a depth of A = approx. 45 mm.
This modification has already been taken into account for reordering.

Fig 3: Identifying Re-Machining Area On Special Tool (11 6 380)

Courtesy of BMW OF NORTH AMERICA, INC.

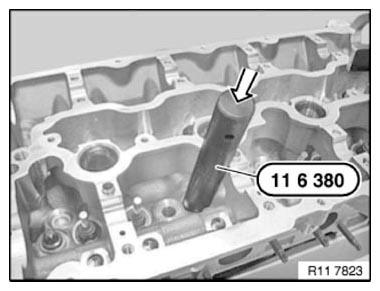

Manually press on valve stem seal as far as it will go with special tool 11 6 380 .

Graphic N63.

Fig 4: Pressing Valve Stem Seal With Special Tool (11 6 380)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
