11 34 552 Removing and installing/replacing all valves (N63)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

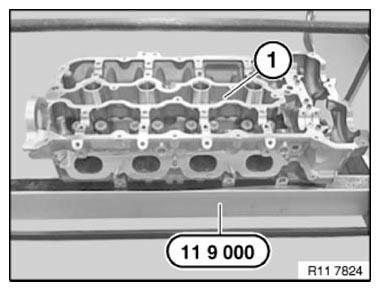

Mount cylinder head (1) on special tool 11 9 000.

Fig 1: Mounting Cylinder Head On Special Tool 11 9 000

Courtesy of BMW OF NORTH AMERICA, INC.

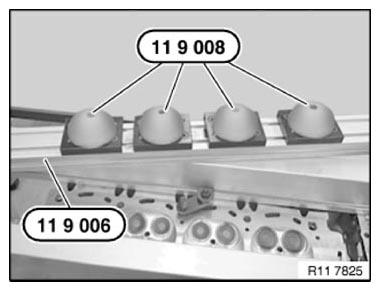

Prepare special tool 11 9 008 on special tool 11 9 006 .

Fig 2: Preparing Special Tool (11 9 008) On Special Tool (11 9 006)

Courtesy of BMW OF NORTH AMERICA, INC.

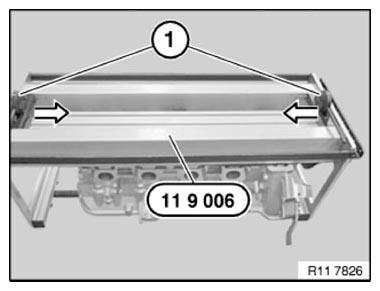

Position special tool 11 9 006 with silicone cushion on cylinder head.

Slide locks (1) in direction of arrow and pretension with eccentric shaft.

Fig 3: Identifying Locks And Special Tool (11 9 006)

Courtesy of BMW OF NORTH AMERICA, INC.

Press down valve spring with special tool 11 8 840 .

Fig 4: Pressing-Down Valve Spring

Courtesy of BMW OF NORTH AMERICA, INC.

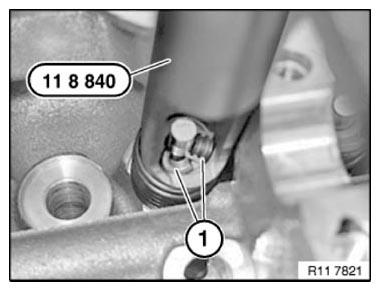

Remove valve cotters (1) with a magnet.

Place valve springs and valve keys on special tool 11 4 480 in an orderly manner.

Fig 5: Removing Valve Cotters

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Incorrect assembly possible.
Incorrect assembly will result in valve spring breakage.
Color marking (1) is normally on lower end of valve spring.
Only the diameter is decisive for the correct installation of the valve springs.
Install valve spring so that larger diameter points to spring plate at bottom.

Fig 6: Identifying Color Marking On Valve Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Arrangement:

Valve
Valve stem seal with spring cup, bottom
Valve spring
Top spring cup
Valve keys

Fig 7: Exploded View Of Intake Valve
Courtesy of BMW OF NORTH AMERICA, INC.

Release special tool 11 9 006 from cylinder head.

Remove all valves and place on special tool 11 4 480 in an orderly manner.

Fig 8: Preparing Special Tool (11 9 008) On Special Tool (11 9 006)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
