Functional networking
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

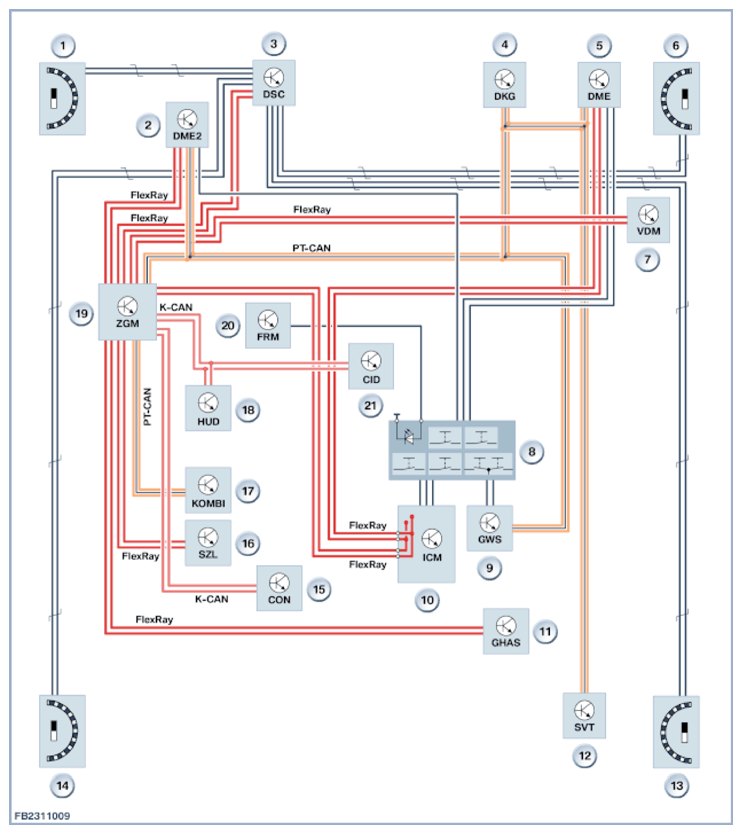

The system overview shows the functional networking using the example F1x.
| Item | Explanation |
|---|---|
| 1 | Front left wheel speed sensor |
| 2 | Digital Engine Electronics 2 (DME2, Slave) |
| 3 | Dynamic stability control (DSC) |
| 4 | Twin-clutch gearbox (DKG) |
| 5 | Digital Engine Electronics (DME, Master) |
| 6 | Front right wheel speed sensor |
| 7 | Vertical dynamics management (VDM) |
| 8 | Center console operating facility |
| 9 | Gear selector switch (GWS) |
| 10 | Integrated chassis management (ICM) |
| 11 | Regulated differential lock (GHAS) |
| 12 | Servotronic (SVT) |
| 13 | Rear right wheel speed sensor |
| 14 | Rear left wheel speed sensor |
| 15 | Controller (CON) |
| 16 | Steering column switch center (SZL) |
| 17 | Instrument cluster |
| 18 | Head-Up Display (HUD) |
| 19 | Central gateway module (ZGM) |
| 20 | Footwell module (FRM) |
| 21 | Central information display (CID) |

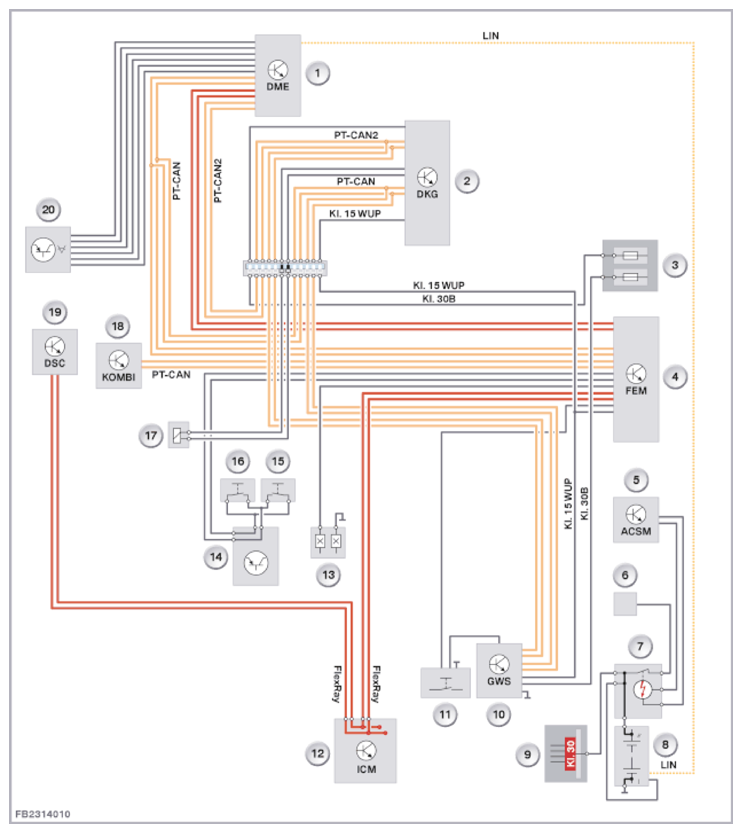

The system overview shows the functional networking using the example F8x.
| Item | Explanation |
|---|---|
| 1 | Digital engine electronics |
| 2 | Twin-clutch gearbox (DKG) |
| 3 | Front fuse and relay module |
| 4 | Front Electronic Module (FEM) |
| 5 | Crash Safety Module (ACSM) |
| 6 | transfer terminal point |
| 7 | Safety battery terminal |
| 8 | Battery |
| 9 | Power distribution box, battery |
| 10 | Gear selector switch (GWS) |
| 11 | Drivelogic button |
| 12 | Integrated chassis management (ICM) |
| 13 | Brake light switch |
| 14 | Steering column switch cluster |
| 15 | Shift paddle, right |
| 16 | Shift paddle, left |
| 17 | Parking lock unit |
| 18 | Instrument panel (KOMBI) |
| 19 | Dynamic stability control (DSC) |
| 20 | Accelerator pedal module |
