Functional networking
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

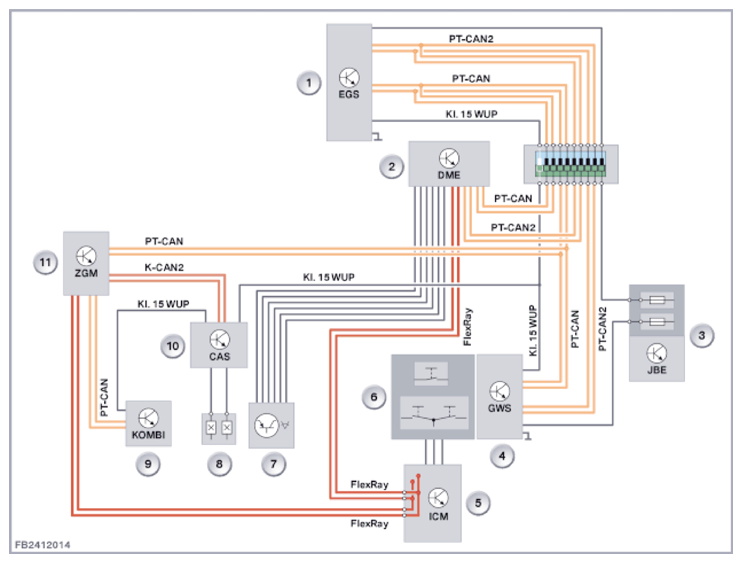

The following system overview shows the functional networking from an electrical view.
Example F10 Active Hybrid
| Item | Explanation |
|---|---|
| 1 | Electronic transmission control (EGS) |
| 2 | Digital engine electronics |
| 3 | Distribution box (junction box) |
| 4 | Gear selector switch (GWS) |
| 5 | Integrated chassis management (ICM) |
| 6 | Center console operating facility |
| 7 | Accelerator pedal module |
| 8 | Brake light switch |
| 9 | Instrument panel (KOMBI) |
| 10 | Car access system (CAS) |
| 11 | Central gateway module (ZGM) |
