Structure of the automatic transmission
The dual-mass flywheel with the integrated centrifugal pendulum is securely connected with the combustion engine. The connection to the automatic transmission is performed via slip-on gearing.
The larger electrical machine and the additional torsional vibration damper mean that the housing of the GA8P75HZ automatic transmission is extended by 30 mm.
The hybridized scopes for the automatic transmission can be divided into the following components:
- Dual-mass flywheel
- Additional torsional vibration damper
- Decoupler
- Electric machine
- Reinforced multidisc clutch B (fixed brake)
- Electrical transmission oil pump for supply with transmission oil pressure when transmission input shaft is stationary (electric driving)
The multidisc clutch B is reinforced. This is necessary since it must also permit driving off and crawling of the vehicle in addition to its function as a shift element.

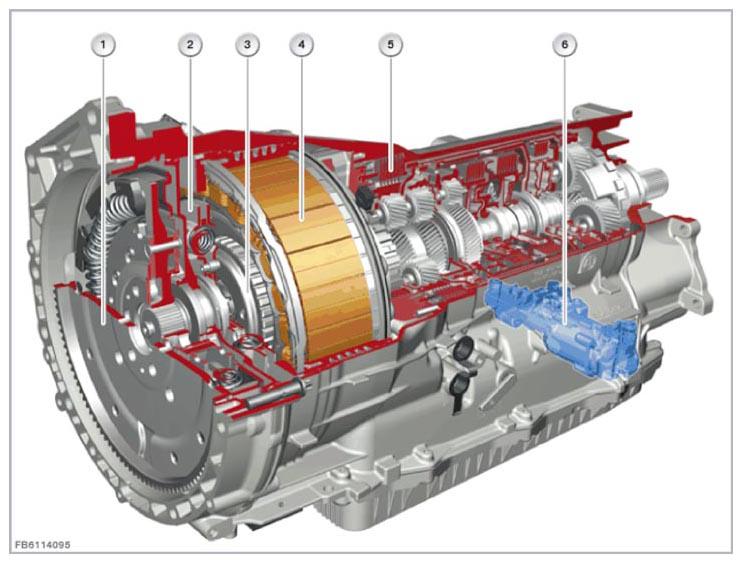

| Item | Explanation |
|---|---|
| 1 | Dual-mass flywheel (including torsional vibration damper and centrifugal pendulum) |
| 2 | Additional torsional vibration damper |
| 3 | Decoupler |
| 4 | Electric machine |
| 5 | Multidisc clutch B (fixed brake) |
| 6 | Electric transmission oil pump |
There is a separate functional description for the electrical machine.

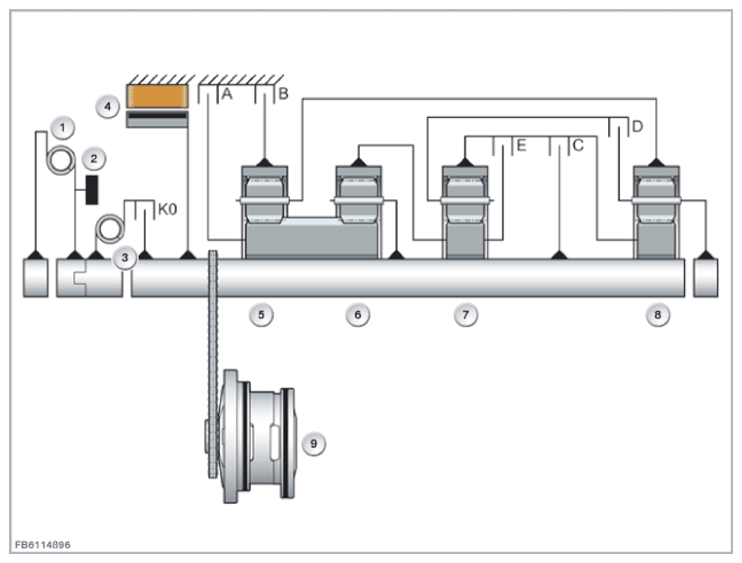

The following schematic layout shows how the components are integrated in the automatic transmission.
| Item | Explanation |
|---|---|
| 1 | Torsional vibration damper |
| 2 | Centrifugal pendulum |
| 3 | Additional torsional vibration damper |
| 4 | Electric machine |
| 5 | Gear set 1 |
| 6 | Gear set 2 |
| 7 | Gear set 3 |
| 8 | Gear set 4 |
| 9 | Mechanical transmission oil pump |
| A | Multidisc clutch A (fixed brake) |
| B | Multidisc clutch B (fixed brake = integrated drive-off element) |
| C | Multidisc clutch C |
| D | Multidisc clutch D |
| E | Multidisc clutch E |
| K0 | Decoupler |

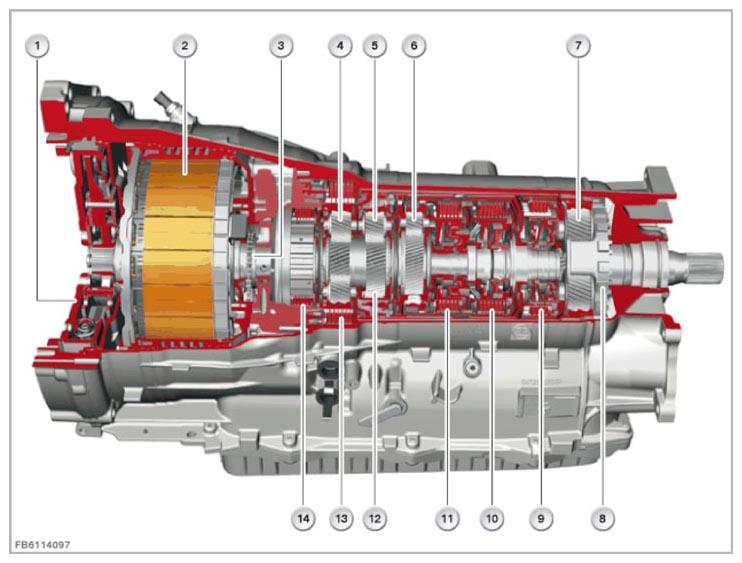

Overview, automatic transmission
| Item | Explanation |
|---|---|
| 1 | Dual-mass flywheel |
| 2 | Electric machine |
| 3 | Drive chain of the mechanical transmission oil pump |
| 4 | Gear set 1 |
| 5 | Gear set 2 |
| 6 | Gear set 3 |
| 7 | Gear set 4 |
| 8 | Parking lock |
| 9 | Multidisc clutch D |
| 10 | Multidisc clutch C |
| 11 | Multidisc clutch E |
| 12 | Common sun gear for gear sets 1 and 2 |
| 13 | Multidisc clutch B (fixed brake = integrated drive-off element) |
| 14 | Multidisc clutch A (fixed brake) |
The following table shows in which gear which shift element is closed.
| Gear | Brake A | Brake B | Clutch C | Clutch D | Clutch E |
|---|---|---|---|---|---|
| 1 | • | • | • | ||
| 2 | • | • | • | ||
| 3 | • | • | • | ||
| 4 | • | • | • | ||
| 5 | • | • | • | ||
| 6 | • | • | • | ||
| 7 | • | • | • | ||
| 8 | • | • | • | ||
| R | • | • | • |
