Inside mirror with high-beam assistant
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The high-beam assistant camera and high-beam assistant control unit are installed in a common housing in the interior mirror. The high-beam assistant camera is a simplified image sensor that can recognise the color and intensity of the light. A plug connector supplies the high-beam assistant camera with voltage. An additional connector connects the high-beam control unit to the CAN bus of the vehicle.

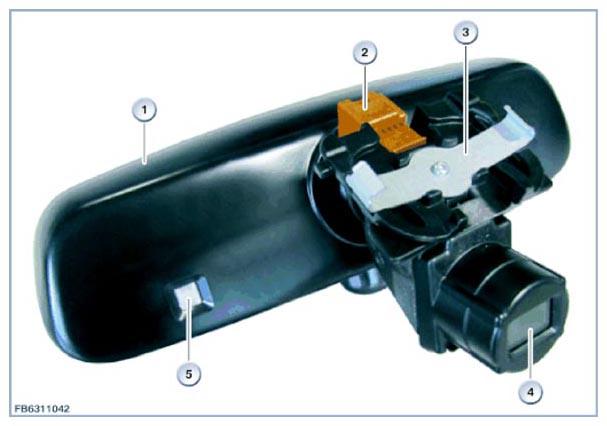

| Item | Explanation |
|---|---|
| 1 | Inside mirror with high-beam assistant |
| 2 | Plug connection, LVDS line |
| 3 | Camera holder |
| 4 | Camera |
| 5 | Photosensor |
