Central gateway module (ZGM)
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The central gateway module (ZGM) links all of the data buses. The central gateway module's (ZGM) gateway function thus supports data exchanges amongst the various bus systems. Stored system functions can be called up using appropriate commands.

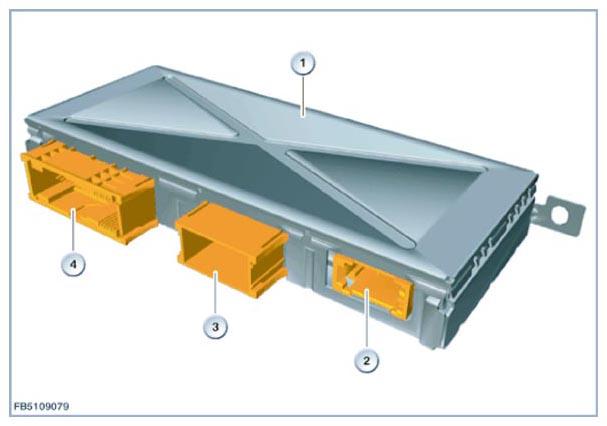

| Item | Explanation |
|---|---|
| 1 | Central gateway module (ZGM) |
| 2 | MOST interface |
| 3 | 18-pin plug connection |
| 4 | 54-pin plug connection |
