11 14 085 Removing and installing timing case cover, top right (N63O1)

Gear case cover, cylinders 1-4:

Necessary preliminary work:

• Remove right INTERCOOLER

Release screws (1).

Tightening torque 11 14 3AZ .

Remove timing case cover (2).

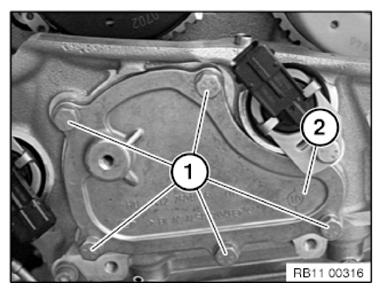

Fig 1: Identifying Timing Case Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace gasket (1).

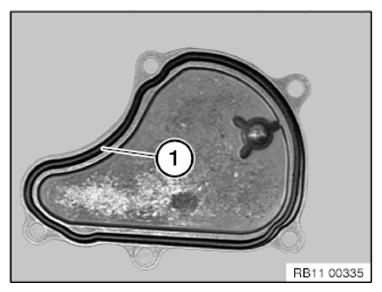

Fig 2: Identifying Cover Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
