Removing and installing/replacing footwell light (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Follow INSTRUCTIONS for handling light bulbs (interior lighting).
Footwell, left/right:

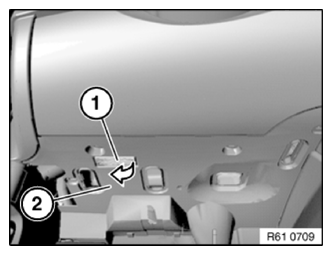

Lever footwell light (1) in direction of arrow out of trim panel (2).
Disconnect plug connection behind and remove footwell light (1).
Door, left/right:

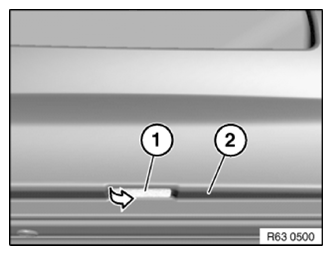

Lever footwell light (1) in direction of arrow out of door trim panel (2).
Disconnect plug connection behind and remove footwell light (1).
Replacement:
- If necessary, remove bulb, note BULB TYPE
The footwell light in LED technology must be completely replaced !

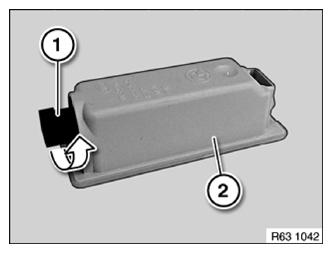

Turn bulb holder (1) in direction of arrow and pull out of footwell light (2).
Installation note:
Make sure bulb holder (1) is correctly seated and latched on footwell light (2).

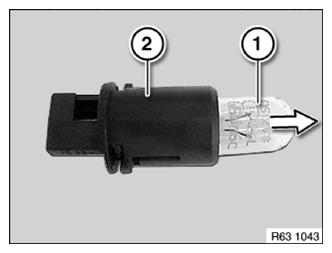

Pull bulb (1) in direction of arrow out of bulb holder (2).
