Removing and installing or replacing window cavity cover strip on outside of left or right front door (330i xDrive Wagon, 328d xDrive Wagon)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 324
- 00 9 325
IMPORTANT:
Weather strip in plastic design cannot be removed without damage.
Observe PROCEDURE for using special tool 00 9 324.
The " INSTRUCTIONS on fitting window guide seals" serve as the basis for this repair instruction and must be observed without fail.
Necessary preliminary tasks:
- Remove front door MIRROR .
IMPORTANT:
If reusing the existing window cavity cover strip (1), make sure it is not bent.

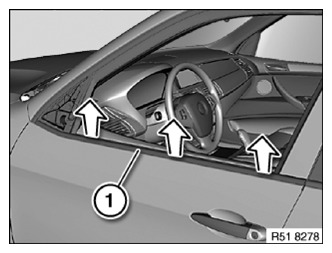

Lever out weather strip (1) with special tool 00 9 324 (starting at B-pillar).
At the same time, pry out weather strip (1) carefully using special tool 00 9 325 in the area of the B-pillar cover.
Installation note:
Moisten weather strip (1) prior to installation with APPROVED LUBRICANT .
