Removing and installing/replacing rear (inside) left or right door sill cover strip (4' Series Gran Coupe Sedan)

Special tools required:

• 00 9 325

Necessary preliminary work:

• Release REAR SEAT
• Remove ARMREST SIDE SECTION

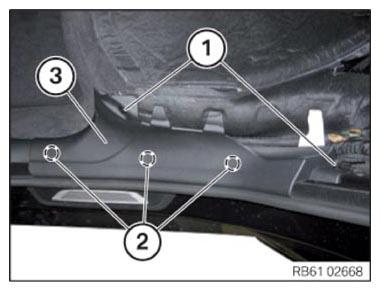

Release expanding rivets (1).

Release clips (2) on door sill cover strip (3) with special tool 00 9 325.

Pull door sill cover strip (3) up and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty clips (1).

Fit door sill cover strip (2) with pre-installed clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.
