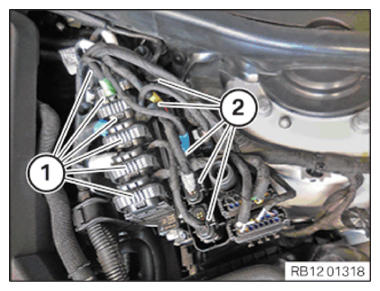

Connecting the connector with the DME control unit and the power distribution box (PDM)

• Route and secure the wiring harnesses.
• Connect all connectors (1) with the DME control unit from back to front and lock it audibly.
• Connect all the connectors (2) with the power distribution box (PDM) and lock it audibly.
