Blocking the crankshaft in the TDC firing position of the first cylinder (B58 6-cyl. engine with automatic transmission)

Version with automatic transmission:

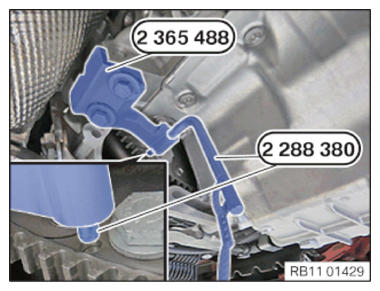

Position the special tool 2 365 488 and secure with the corresponding screws.

Block the crankshaft with the special tool 2 288 380 in the TDC firing position of the first cylinder.

Courtesy of BMW OF NORTH AMERICA, INC.
