Block the crankshaft in the TDC firing position of cylinder 1 (B58 6-cyl. engine with manual transmission)

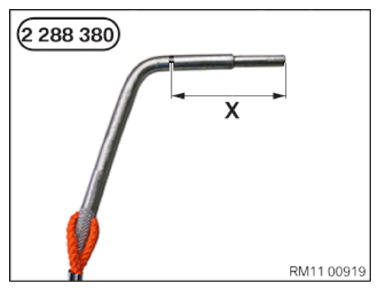

Insert the special tool up to dimension (X) in the dowel hole.
Dimension (X) = 56 mm

Courtesy of BMW OF NORTH AMERICA, INC.

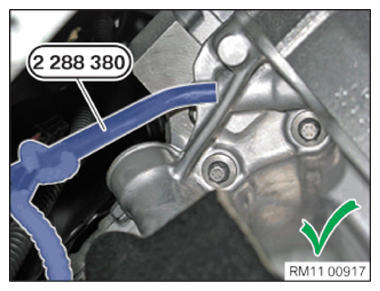

Special tool 2 288 380 has been correctly positioned.

Engine is in TDC firing position of cylinder 1.

Courtesy of BMW OF NORTH AMERICA, INC.

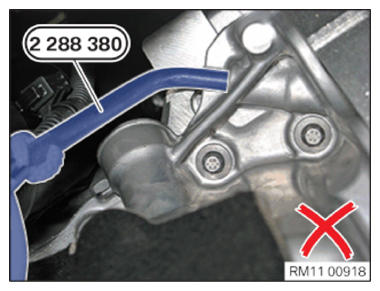

Special tool 2 288 380 incorrectly positioned.

TDC firing position of cylinder 1 not achieved.

Courtesy of BMW OF NORTH AMERICA, INC.

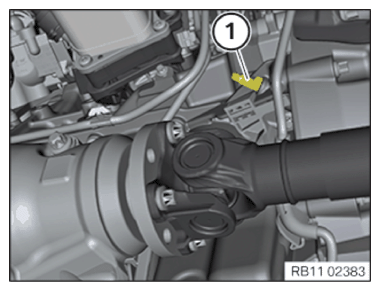

Open sealing cap (1) from the oil sump.

Courtesy of BMW OF NORTH AMERICA, INC.

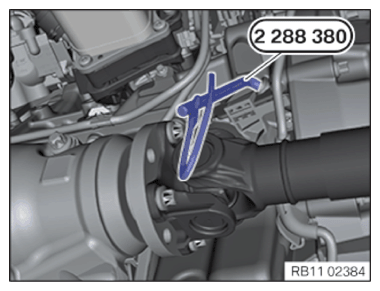

Use the special tool 2 288 380 to block the crankshaft in the TDC firing position of cylinder 1.

NOTE: If the crankshaft is blocked properly, it is not possible to turn the engine forwards or backwards on the vibration damper!

Courtesy of BMW OF NORTH AMERICA, INC.
