Engine - Repair (2 Of 3) (F32, F33 & F36)
>>
11 36 Variable Camshaft Timing Control
>>
11 36 042 Removing and installing/replacing intake adjuster (B58 6-Cyl. Engine) (4' Series Coupe/Convertible, 4' Series Gran Coupe Sedan)
>>
Removing intake adjuster
Removing intake adjuster
Remove VANOS central valve
(1)
of the intake side in arrow direction.
Courtesy of BMW OF NORTH AMERICA, INC.

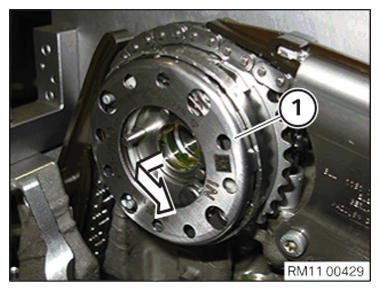

Remove intake adjuster
(1)
from the intake camshaft and feed out from the rear of the timing chain.
Courtesy of BMW OF NORTH AMERICA, INC.
Remove VANOS central valve
(1)
of the intake side in arrow direction.
Courtesy of BMW OF NORTH AMERICA, INC.
Remove intake adjuster
(1)
from the intake camshaft and feed out from the rear of the timing chain.
Courtesy of BMW OF NORTH AMERICA, INC.
