REP-TAT-P-1354-02 Installing the throttle body

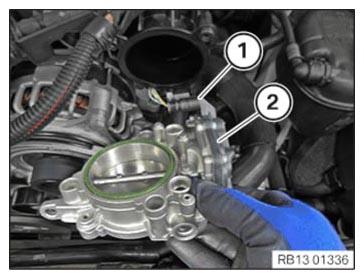

- Connect and lock the connector (1) on the throttle body (2).
The connector (1) must engage audibly.

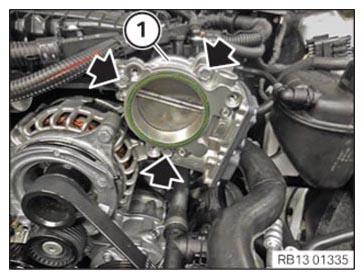

- Feed in and install the throttle body (1).
- Replace gaskets.
Parts : Seals
- Tighten screws (arrows).TIGHTENING TORQUES SPECIFICATIONS
Throttle body to intake plenum 6X50 tightening torque 7 Nm - Insert and install charge air line (5).
- Tighten down screws (4).TIGHTENING TORQUES SPECIFICATIONS
Charge air line to throttle valve M6x30 tightening torque 8 Nm - Connect connectors (3) and lock.
- Connect connectors (2) and lock.
- Connect connectors (1) and lock.
All connectors must audibly engage.
