REP-TAT-P-1165-02 Install heat shield for cylinder head cover

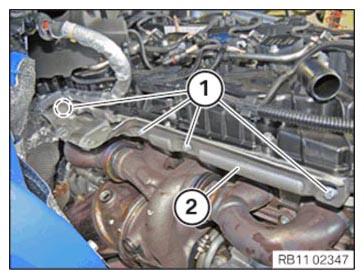

• Position the heat shield (2) and secure it with screws (1).

TIGHTEN TORQUES SPECIFICATIONS

Heat shield to cylinder head
M8 x 12	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
