REP-TAT-P-1137-02 Installing servomotor for the eccentric shaft

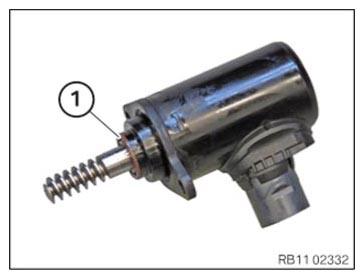

• Detach gasket (1) and replace.

  Parts:  Gasket

  Courtesy of BMW OF NORTH AMERICA, INC.

• Press in gasket (1) up to stop on housing of the servomotor.

  Courtesy of BMW OF NORTH AMERICA, INC.

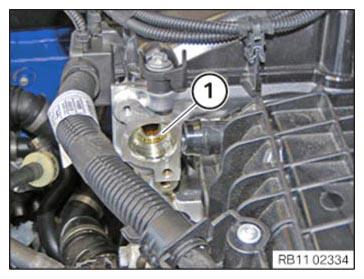

• Clean sealing surface (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert servomotor (1) till the gearing is lined up.

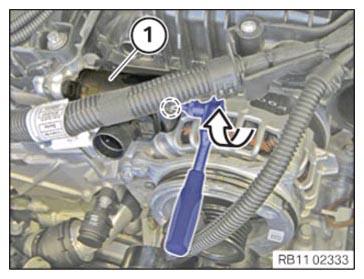

• Turn the servomotor (1) in the marked area to the right with conventional tools until it rests against the cylinder head.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1).

TIGHTEN TORQUES SPECIFICATIONS

Servomotor for the eccentric shaft to cylinder head
M6 x 16	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Lock connector (2).
• Position the ventilation line (1) on the intake plenum and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
