REP-TAT-P-1131-02 Installing the timing chains

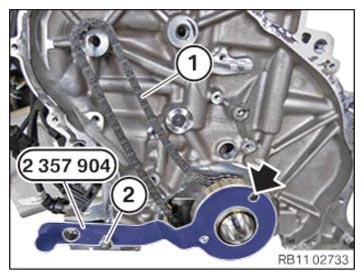

• Position the bottom timing chain (1).
• Position the crankshaft using special tool 2 357 904  and secure the special tool 2 357 904  with the screw (2).
• Make sure the special tool 2 357 904  is correctly installed on the guide pin of the crankshaft and on the guide bushing of the crankcase.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the camshaft sprocket (2) into the timing chain and position it on the crankcase.
• Tighten down screw (1).

TIGHTEN TORQUES SPECIFICATIONS

Sprocket wheel at the crankcase
Clean thread.	108 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the bearing journals (1) and (3).

  Parts:  Bearing journal

• Position the guide rail (4) and screw in the bearing journals (3).

TIGHTEN TORQUES SPECIFICATIONS

Bearing journal to crankcase
Replace bearing journal. Clean thread.	20 Nm

• Position the tensioning rail (2) and screw in the bearing journal (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTEN TORQUES SPECIFICATIONS

Bearing journal to crankcase
Replace bearing journal. Clean thread.	20 Nm

• Remove oil and contamination from the sealing surfaces of the chain tensioner (2).
• Position the chain tensioner (2) and secure with the screws (1).

TIGHTEN TORQUES SPECIFICATIONS

Bottom chain tensioner to crankcase
M6 x 22 Clean thread.	9 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the chain tensioner piston (1) with a screwdriver (2).
• Remove special tool 0 491 012 (11 4 120)  and slowly remove the screwdriver (2).
• Remove special tool 2 357 904  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the tensioning rail (2).
• Install the top timing chain (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the chain (1) for the oil pump.

Courtesy of BMW OF NORTH AMERICA, INC.
