REP-TAT-P-1131-01 Remove timing chains

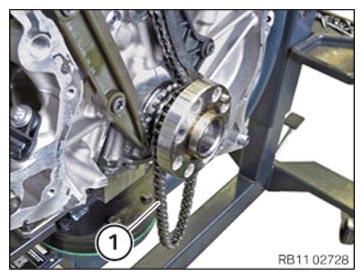

Remove the chain (1).

Courtesy of BMW OF NORTH AMERICA, INC.

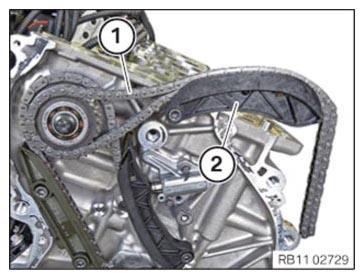

Remove the top timing chain (1) and the tensioning rail (2).

Courtesy of BMW OF NORTH AMERICA, INC.

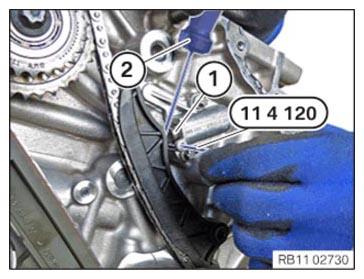

Press in the chain tensioner piston (1) using a screwdriver (2) up to the stop and secure using special tool 0 491 012 (11 4 120) .

Courtesy of BMW OF NORTH AMERICA, INC.

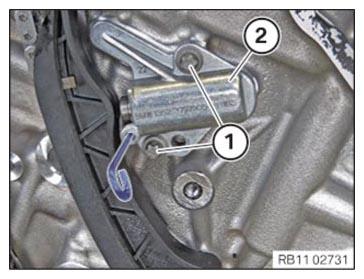

Loosen the screws (1) and remove the chain tensioner (2).

Courtesy of BMW OF NORTH AMERICA, INC.

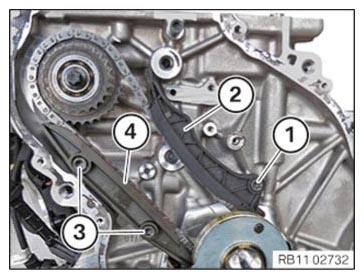

Loosen the bearing journal (1) and remove the tensioning rail (2).
Loosen the bearing journal (3) and remove the guide rail (4).

Courtesy of BMW OF NORTH AMERICA, INC.
Release the screw (1) and remove the camshaft sprocket (2).
Remove the bottom timing chain.

Courtesy of BMW OF NORTH AMERICA, INC.
