REP-TAT-P-1131-01 Remove exhaust camshaft

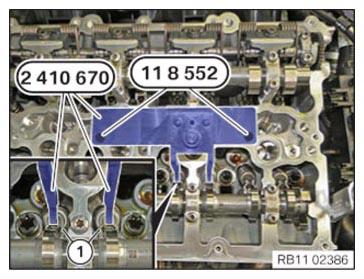

- Position the special tool 2 410 670 at cylinder 2 and hand-tighten it with the special tool 0 495 741 (11 8 552) from the set of special tools 0 495 739 (11 8 550) .
- Screw in both roller cam followers (1) on 2nd cylinder with the spindle nut of the special tool 2 410 670
up to the limit position.
- Remove the roller tappet (1) from high pressure pump bracket (2).

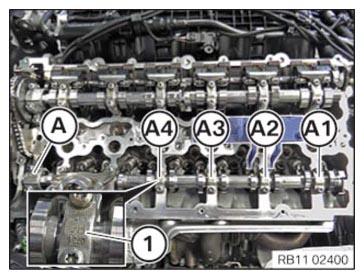

- Pay attention to the numbering on the exhaust camshaft bearing cap.
The exhaust camshaft bearing caps are numbered from (A1) till (A4).
The exhaust camshaft bearing cap (A) is a thrust bearing.

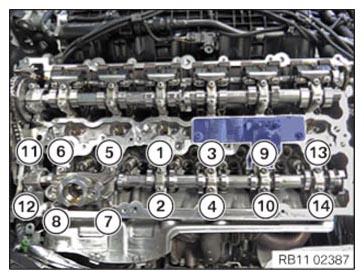

- Release screws in the right sequence (14) till (1) in semi circle pattern.
- Remove high pressure pump bracket and all exhaust camshaft bearing cap.
- Place all exhaust camshaft bearing cap in order in special tool 0 495 105 (11 4 480) .

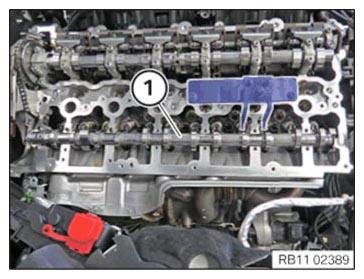

- (1) Remove exhaust camshaft in upward direction.
