REP-TAT-P-1131-02 Install intake camshaft

Clean all bearing positions and coat with motor oil.

Courtesy of BMW OF NORTH AMERICA, INC.

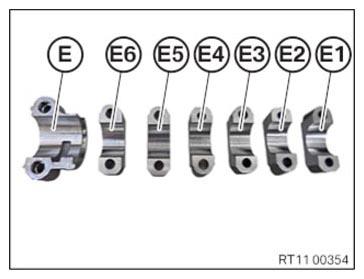

Clean all bearing positions of intake camshaft bearing caps (E1) (E2) (E3), (E4) (E5) (E6) and (E) coat with motor oil.

Courtesy of BMW OF NORTH AMERICA, INC.

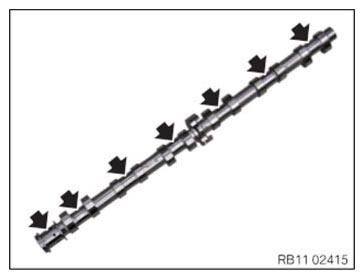

Clean all bearing positions of the intake camshaft and coat with motor oil.

Courtesy of BMW OF NORTH AMERICA, INC.

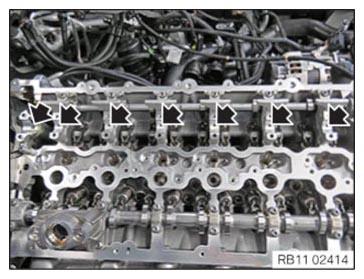

Check all the roller cam followers (1) of the intake side for correct fit.

Courtesy of BMW OF NORTH AMERICA, INC.

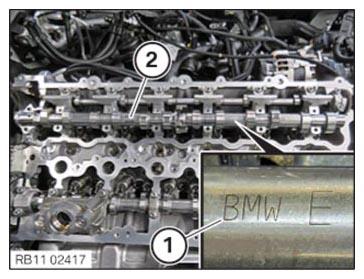

Insert intake camshaft (2) in the bearing brackets in such a way that the mark (1) points towards the top.

Courtesy of BMW OF NORTH AMERICA, INC.

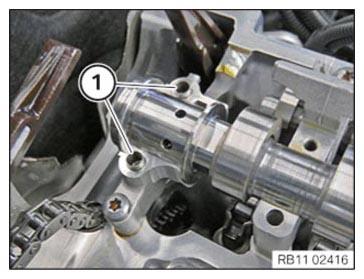

Check fitting sleeves (1) of the thrust bearing for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Engine damage caused by incorrectly installed bearing shells and bearing brackets.
Engine damage may result from incorrectly installing bearing shells and bearing brackets.

Always install all bearing shells and bearing brackets in the same position from which they were removed.

Courtesy of BMW OF NORTH AMERICA, INC.

Coat all the intake camshaft bearing caps (E1) till (E6) and lay the bearing caps for the thrust bearing (E) with motor oil.
Check the tensile strength of the screws for the bearing cap.
The illustration shows the screw with a tensile strength of 8.8 .

Courtesy of BMW OF NORTH AMERICA, INC.
Check the tensile strength of the screws for the bearing cap.
The illustration shows the screw with a tensile strength of 10.9 .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The camshaft is tensioned by the valve springs. Tighten or loosen each screw on the camshaft bearing caps one at a time in the specified sequence and by half a turn only. Repeat procedure.

Press down the intake camshaft bearing cap and apply the screws in the order of (1) to (14) until hand-tight.

Fig 1: Intake Camshaft Bearing Caps Screws Tightening Sequence
Courtesy of BMW OF NORTH AMERICA, INC.
Join all bolts in sequence (1) to (14) in half turns .
Observe the joining torque.
Tighten all screws in a sequence from (1) to (14).

TIGHTEN TORQUES SPECIFICATIONS

Intake camshaft to cylinder head
M6	Tensile strength of screw 8.8 Joining torque	9.6 Nm
tightening torque		9.6 Nm
M6	Tensile strength of screw 10.9 Joining torque	11.8 Nm
tightening torque		11.8 Nm
