REP-TAT-P-1125-02 Installing all pistons with connecting rod

NOTE: The description is for one component only. The procedure is identical for all further components.

Installing piston with connecting rod

NOTE: RISK OF DAMAGE
Damage on the cylinder wall and oil spray nozzles.
Major force can scratch the cylinder wall and bend the oil spray nozzles.

Carefully shift the piston and connecting rod in the engine block.

Aligning piston rings

Courtesy of BMW OF NORTH AMERICA, INC.

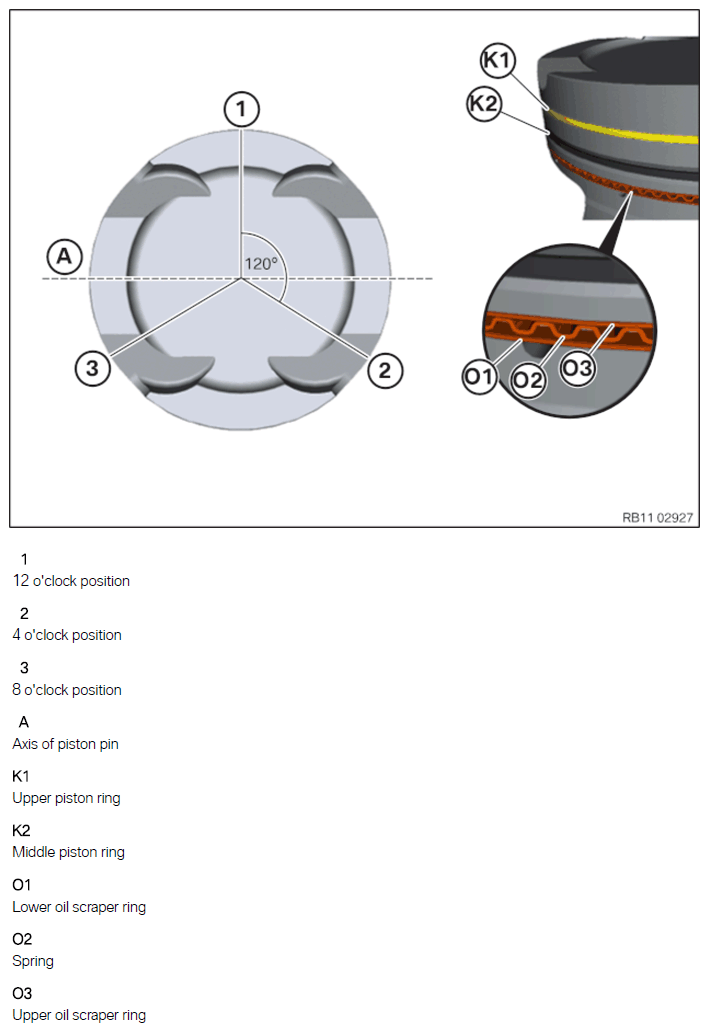

Align the contact points of all piston rings rotated by 120° each.

Do not position contact points over axis of piston pin (A).

Piston ring	Alignment
Lower oil scraper ring (O3)	12 o'clock position (1)
Spring (O2)	4 o'clock position (2)
Upper oil scraper ring (O1)	8 o'clock position (3)
Middle piston ring (K2)	12 o'clock position (1)
Upper piston ring (K1)	4 o'clock position (2)

Make sure that the spring (O2) at the contact point (1) does not overlap.

Courtesy of BMW OF NORTH AMERICA, INC.

Coat the pistons (1) and piston rings lightly with oil.
Insert the pistons (1) with the piston rings into the connector 0 495 373 (11 6 240) .
Screw special tool 0 496 144 (11 8 860) on at large connecting rod eye (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Align the piston so that the arrow (1) points to cylinder 1.
Insert the piston with the connecting rod into the special tool 0 495 373 (11 6 240) and guide it into the cylinder.

NOTE: RISK OF DAMAGE
Damage on the cylinder wall and oil spray nozzles.
Major force can scratch the cylinder wall and bend the oil spray nozzles.

Carefully shift the piston and connecting rod in the engine block.

Courtesy of BMW OF NORTH AMERICA, INC.

Push in piston by hand with only little force. Do not use striking tools.

Install the lower connecting rod bearing

Vacuum the connecting rod bearing shell and cracked surface (1) with a vacuum cleaner (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the connecting rod bearing shell (1) into the connecting rod bearing cap (2).
Apply a light coat of oil to the connecting rod bearing shell (1).

Courtesy of BMW OF NORTH AMERICA, INC.
If necessary, screw the inlet guide 0 496 144 (11 8 860) into the large connecting rod eye.
Pull the connecting rod up to the connecting rod bearing journal.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Engine damage caused by incorrectly installed bearing shells and bearing brackets.
Engine damage may result from incorrectly installing bearing shells and bearing brackets.

Always install all bearing shells and bearing brackets in the same position from which they were removed.

Courtesy of BMW OF NORTH AMERICA, INC.

Attach the connecting rod bearing caps to the connecting rod until the designations (1) match.
Make sure that the connecting rod bearing (2) is attached to the same connecting rod that it was detached from.
A mixed installation of the connecting rod bolts (A) and (B) on a connecting rod bearing cap is not permissible.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
When installing new connecting rod bolts, you must ensure that two connecting rod bolts are always used on one connecting rod bearing cap.
Mixed installation of various connecting rod bolts on one connecting rod bearing cap is not permitted.

Courtesy of BMW OF NORTH AMERICA, INC.

Replace screws (1).
Tighten the screws.
Make sure that the connecting rod bearing cap (2) rests completely on the connecting rod.

TIGHTEN TORQUES SPECIFICATIONS

Connecting rod bearing cap to connecting rod Replace screws.
Tighten screws crosswise.
Joining torque	20 Nm
1. Angle of rotation	70°
2. Angle of rotation	70°
