REP-TAT-P-1123-02 Installing the vibration damper

NOTE: When removing/refitting or replacing the vibration damper, the radial shaft seal must also be replaced.

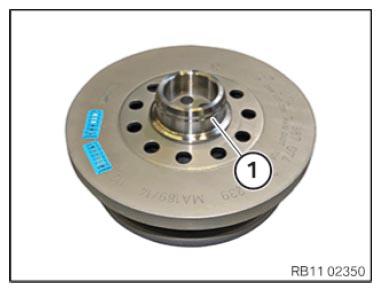

Clean oil and dirt off sealing surface (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Check if the special tool 0 496 595 (11 6 130) is installed correctly.

If not fitted, install special tool 0 496 595 (11 6 130), and then remove vibration damper.

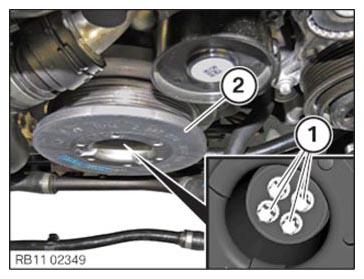

Install vibration damper (2) from the top and position correctly. Tighten the screws (1).

Joining torque: 40 Nm, angle of rotation: 120°

NOTE: Replace screws.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 0 496 595 (11 6 130).
