REP-TAT-P-1123-01 Removing the vibration damper

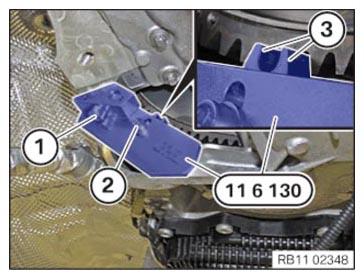

• Position special tool 0 496 595 (11 6 130)  and fasten with screw (1).
• Slide counter support on screw (2) in direction of flywheel and turn the engine on the vibration damper until the gearing (3) can reach into the flywheel.

  Tighten down screw (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release screws (1) and remove the vibration damper (2) from the top.
