Engine - Repair (F30, 6-CYL AWD)
>>
11 22 Flywheel
>>
11 22 510 Removing and installing/replacing flywheel (transmission removed)
>>
REP-TAT-P-1122-01-1 Removing flywheel
REP-TAT-P-1122-01-1 Removing flywheel
Fasten the flywheel with the special tool
0 493 938 (11 9 260)
and tighten with the special tool
0 494 130 (11 9 264)
.
Release screws (1) to (8).

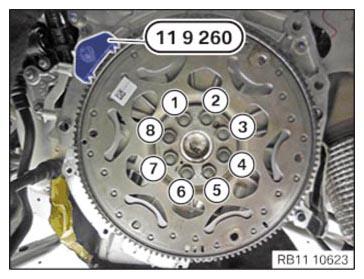

Fig 1: Flywheel Screws Loosening Sequence
Courtesy of BMW OF NORTH AMERICA, INC.
