REP-TAT-P-1121-02 Installing the crankshaft
NOTE:
RISK OF DAMAGE
Engine damage caused by incorrectly installed bearing shells and bearing brackets.
Engine damage may result from incorrectly installing bearing shells and bearing brackets.
Engine damage caused by incorrectly installed bearing shells and bearing brackets.
Engine damage may result from incorrectly installing bearing shells and bearing brackets.
- Always install all bearing shells and bearing brackets in the same position from which they were removed.
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.

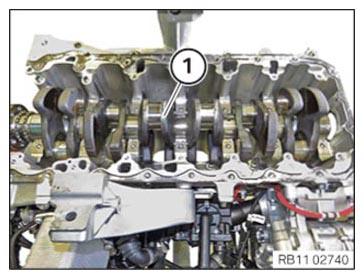

- Install the crankshaft (1).
NOTE:
TECHNICAL INFORMATION
The crankshaft bearing cap, main bearing shell and guide bearing shell are aligned with each other.
Always install the crankshaft bearing cap, main bearing shells and guide bearing shells in the cylinder from which they were removed.
The crankshaft bearing cap, main bearing shell and guide bearing shell are aligned with each other.
Always install the crankshaft bearing cap, main bearing shells and guide bearing shells in the cylinder from which they were removed.

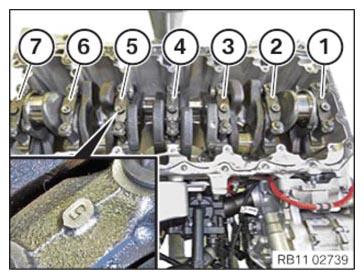

- Observe the assignment and numbering (1) to (7) of the main bearing caps.
(1) = Engine, front (vibration damper)
(7) = Clutch side
- Position the main bearing caps (1) to (7).

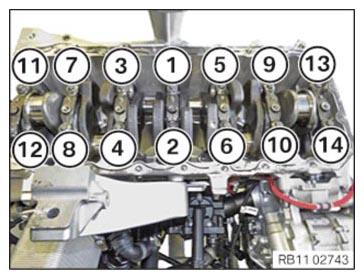

- Replace screws (1) to (14).
Parts: screw
- Tighten screws in the order (1) to (14).
TIGHTEN TORQUES SPECIFICATIONS
| Main bearing cap to crankcase | ||
| M10x85 Replace screws. |
1. Joining torque | 25 Nm |
| 3. Angle of rotation | 60° | |
| 4. Angle of rotation | 60° | |
