REP-TAT-P-1114-02 Install the rear timing case cover

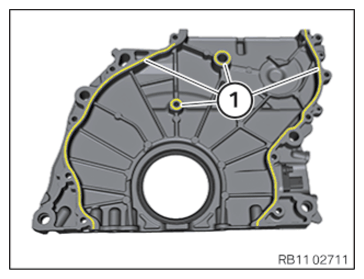

NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g. emery cloth) to clean the surfaces can damage them and lead to leaks or engine damage.

• Do not use any metal-cutting tools.

• Remove seal residue in this area (1) using special tool 0 495 102 (11 4 470)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

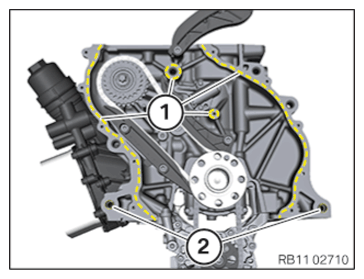

• Check the lining sleeves (2) for correct positioning and replace faulty lining sleeves.

NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g. emery cloth) to clean the surfaces can damage them and lead to leaks or engine damage.

• Do not use any metal-cutting tools.

• Remove seal residue in this area (1) using special tool 0 495 102 (11 4 470)  .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES

NOTE: TECHNICAL INFORMATION
The processing time of the liquid sealing compound can be at a maximum of 12 min.

• Apply the sealing compound in area (1) along the inner edge.

TECHNICAL DATA SPECIFICATIONS

Height of the sealing bead

2.0 mm... 2.5 mm

• Install special tool 0 496 137 (11 8 815)  on the crankshaft.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace screws (1) to (11).

  Parts:  screw

• Carefully install the timing case cover.
• Tighten screws in the order (1) to (11).

TIGHTEN TORQUES SPECIFICATIONS

Rear timing case cover on crankcase
M6 x 31 Replace screws.	Joining torque	8 Nm
	Angle of rotation	90°

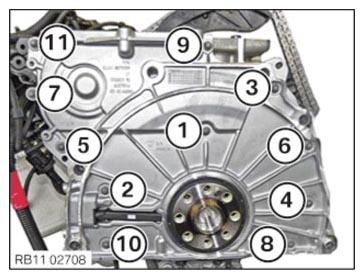

Fig 1: Timing Case Cover Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.
