REP-TAT-P-1112-01 Removing the cylinder head gasket

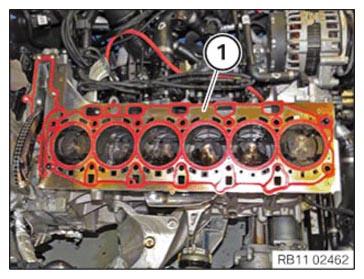

Pull out and remove cylinder head gasket (1).

G12728236

Courtesy of BMW OF NORTH AMERICA, INC.
