REP-TAT-P-1136-02 Install VANOS central valve of the intake side
VANOS central valves

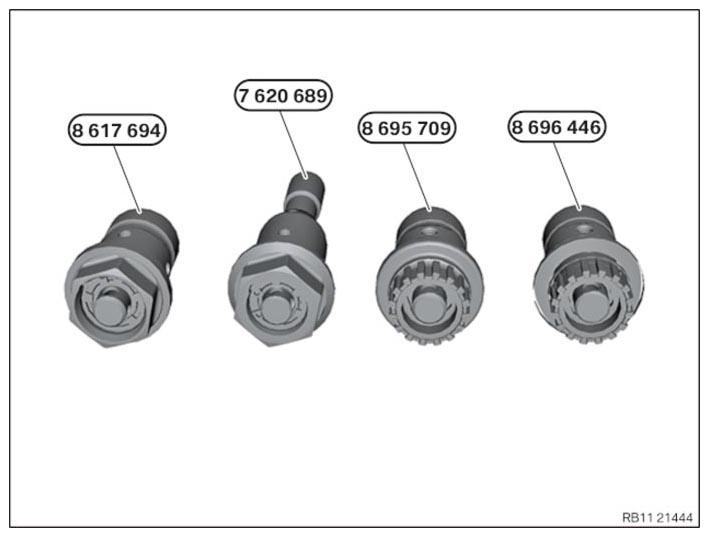

Overview graphic of the VANOS central valves
8 617 694 Short VANOS central valve
7 620 689 Long VANOS central valve
8 695 709 VANOS central valve (increased leakage) (TZV)
8 696 446 VANOS central valve (low leakage) (TZV)
NOTE:
TECHNICAL INFORMATION
After replacing one or more VANOS central valves or VANOS adjusters:
When removing, make note of the identification/part number of the VANOS central valve or VANOS adjuster and consider writing it down.
It must be replaced with a VANOS adjuster or VANOS central valve with the same part number. A mixed installation is not allowed.
Read out the vehicle I-level and proceed accordingly.
Be absolutely certain to pay attention to PuMA measure 64122020.
For further information, see the appropriate BMW Parts Catalogue.
After replacing one or more VANOS central valves or VANOS adjusters:
When removing, make note of the identification/part number of the VANOS central valve or VANOS adjuster and consider writing it down.
It must be replaced with a VANOS adjuster or VANOS central valve with the same part number. A mixed installation is not allowed.
Read out the vehicle I-level and proceed accordingly.
Be absolutely certain to pay attention to PuMA measure 64122020.
For further information, see the appropriate BMW Parts Catalogue.
- Mount and abut VANOS central valve (1) of intake side.
