31 51 020 Replacing shaft seal for right output shaft

Special tools required:

31 5 130

Necessary preliminary tasks:

Remove RIGHT OUTPUT SHAFT

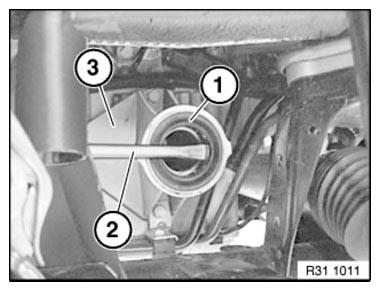

Lift out radial shaft seal (1) from the bearing support (3) with a screwdriver (2).

Courtesy of BMW OF NORTH AMERICA, INC.

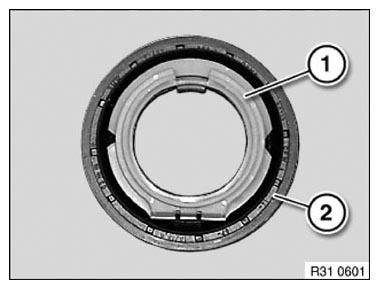

NOTE: Protective sleeve (1) serves to protect the sealing lip of radial shaft seal (2) from being damaged when the output shaft is inserted into the bearing support.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

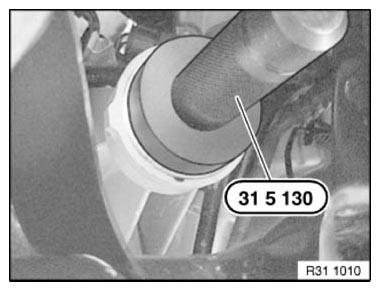

Drive in shaft seal with special tool 31 5 130 as far as it will go.

Courtesy of BMW OF NORTH AMERICA, INC.
