37 14 512 Replacing rear ride height sensor
IMPORTANT:
Read and comply with NOTES ON ESD PROTECTION (ELECTROSTATIC DISCHARGE)
.
Necessary preliminary tasks:
- Remove CAMBER ARM COVER .
Slacken nut (1).
Tightening torque 37 14 4AZ .
Detach jointed rod (2).
Disconnect plug connection (3).
Unclip cable with holder (4).
Release screw (5).
Tightening torque 37 14 1AZ .
Remove ride height sensor.
Installation note:
Replace nut (1).
Align holder with corresponding bore hole on rear axle support.
Replace faulty cable clips.
Replacement:

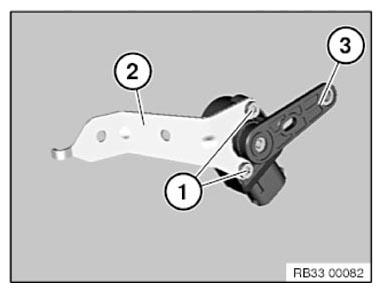

Release screws (1).
Tightening torque 37 14 2AZ .
Take off ride height sensor from holder (2).
Installation note:
Sensor lever (3) points towards wheel when installed.
After installation:
- Check headlight adjustment, correct if necessary.
