Body Gap Dimensions

The dimensions specified in this service information are applicable at an object temperature of 20°C. The aim of adjustment is to achieve a uniform gap.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

For door gaps, the maximum deviation between the front and rear door gaps must be 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

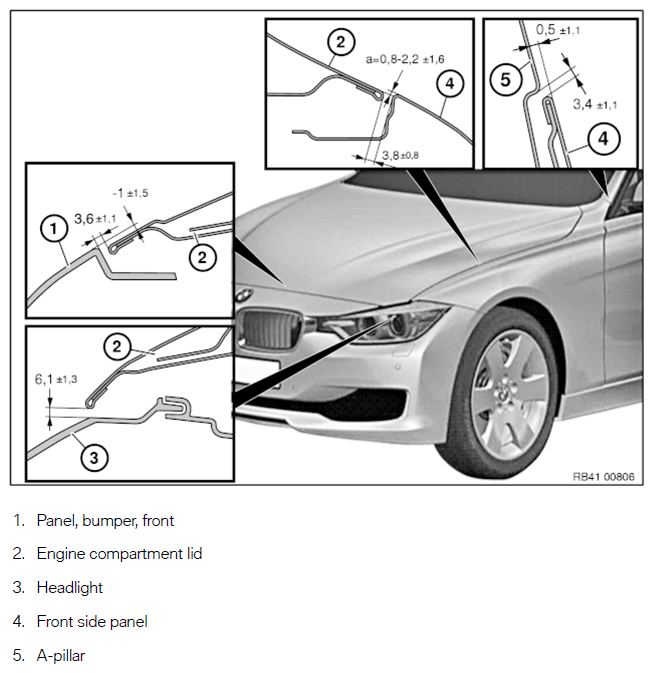

Fig 1: Hood Panel Body Gap Dimensions And Measurement Points

G12845049

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension a increases in size in direction of travel from 0.8 mm at the front to 2.2 ± 1.6 mm.

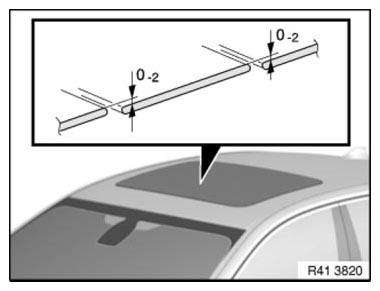

Fig 2: Sunroof Panel Body Gap Dimensions And Measurement Points

G06890310

Courtesy of BMW OF NORTH AMERICA, INC.

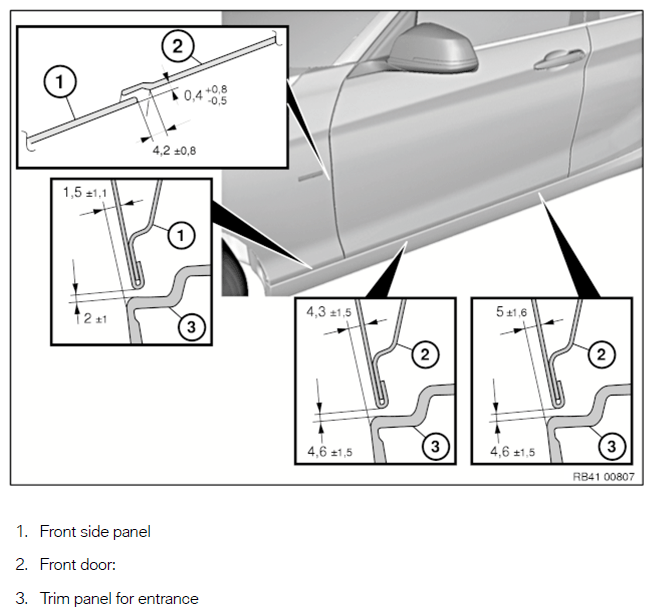

Fig 3: Front Fender And Front Door Panel Body Gap Dimensions And Measurement Points

G12845051

Courtesy of BMW OF NORTH AMERICA, INC.

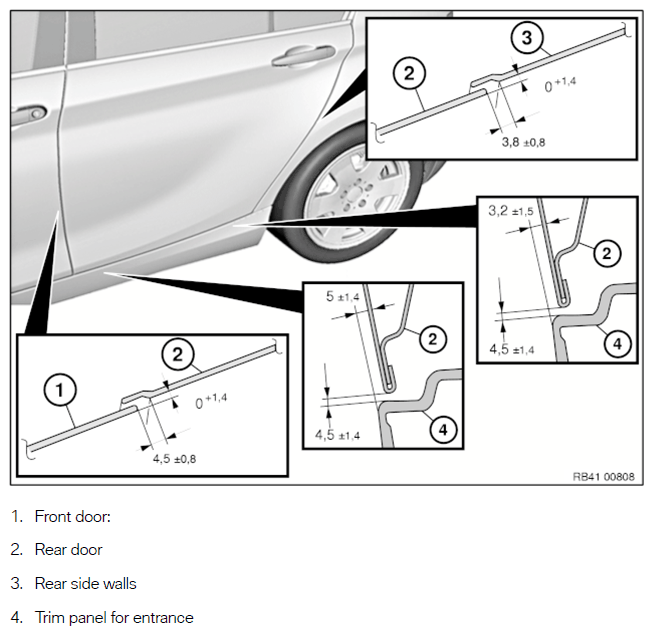

Fig 4: Rear Door Panel Body Gap Dimensions And Measurement Points (Except F35)

G12845052

Courtesy of BMW OF NORTH AMERICA, INC.

F35 only:

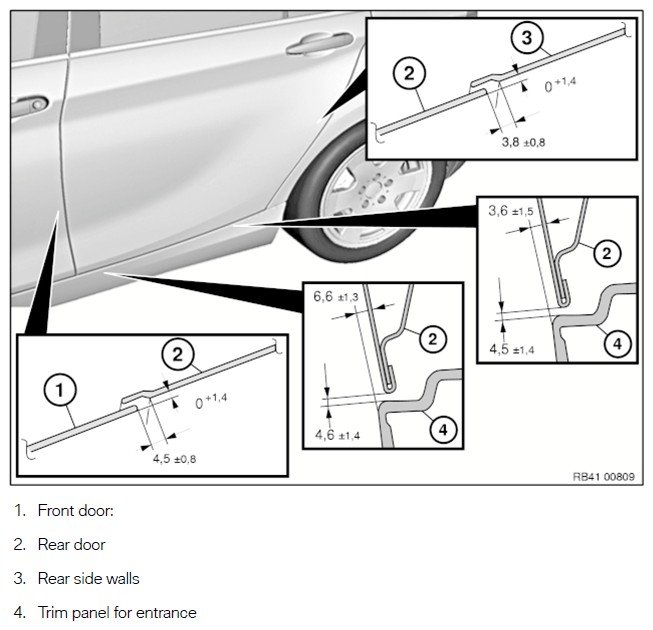

Fig 5: Rear Door Panel Body Gap Dimensions And Measurement Points (F35)

G12845053

Courtesy of BMW OF NORTH AMERICA, INC.

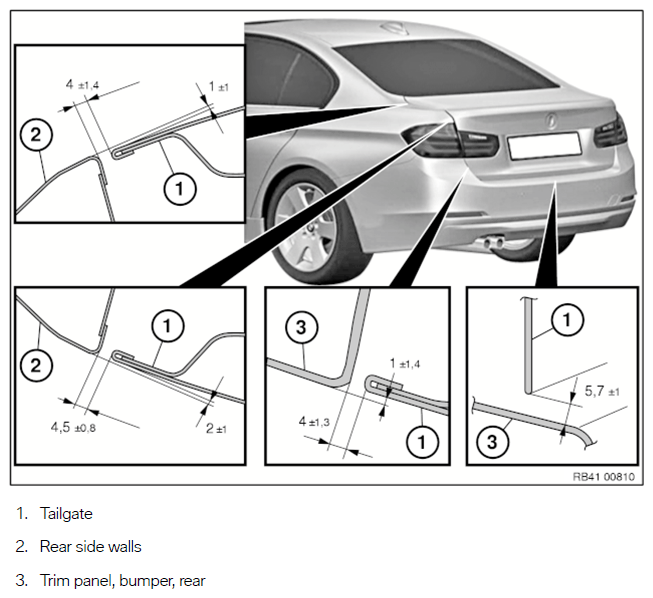

Fig 6: Luggage Lid Panel Body Gap Dimensions And Measurement Points

G12845054

Courtesy of BMW OF NORTH AMERICA, INC.

Dimensions in mm

General Information

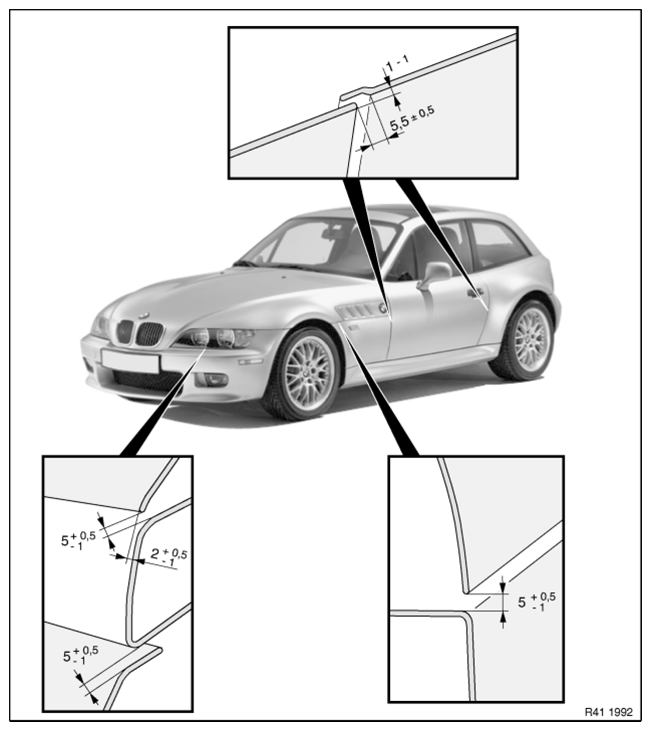

Fig 7: Headlamp, Hood And Front Door Panel Body Gap Dimensions And Measurement Points (General Information)

G12845047

Courtesy of BMW OF NORTH AMERICA, INC.

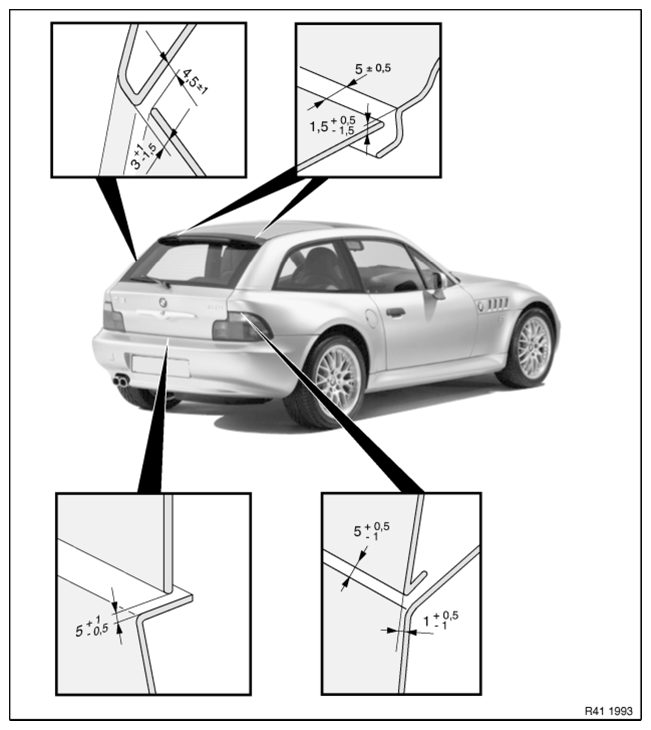

Fig 8: Tailgate Panel Body Gap Dimensions And Measurement Points (General Information)

G12845048

Courtesy of BMW OF NORTH AMERICA, INC.
