66 31 010 Instructions for ACC adjusting device
NOTE:
This service information is valid for the entire F-series with the new ACC sensor.

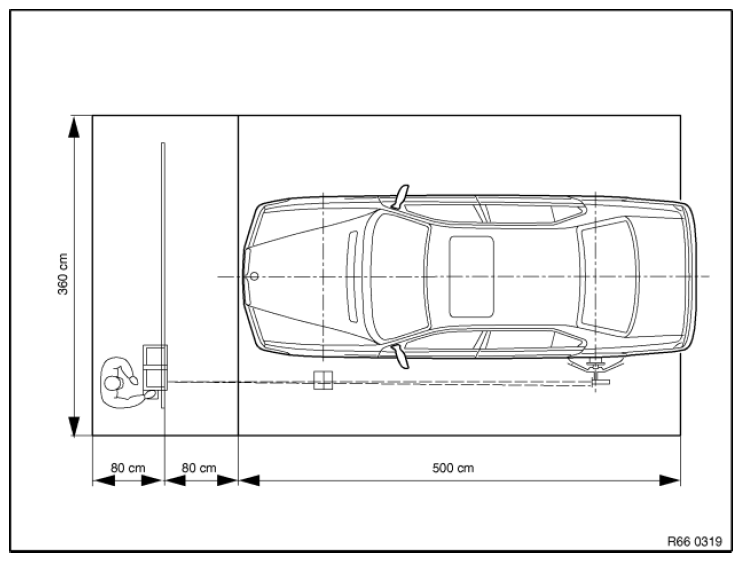

Requirements for the measurement area for ACC adjusting device
Dimensions:
- Area behind the mirror of at least 80 cm that cane be entered
- Distance between mirror and vehicle 80 cm +/- 5 cm
(Distance between mirror and ACC sensor 100 cm +/- 5 cm)
- Total area of work area 360 cm x 660 cm
Maximum irregularity of floor surface:
- Floor surface - adjusting device ≤ 1 mm
- Floor surface - vehicle ≤ 10 mm

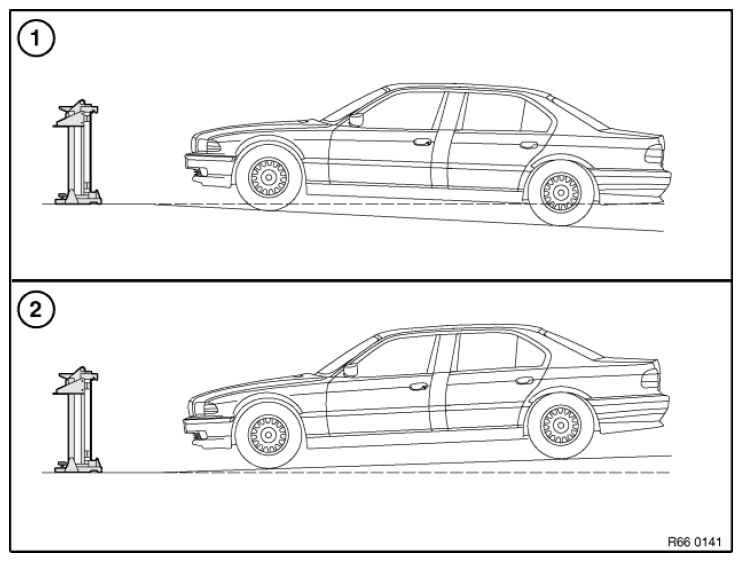

Maximum angle of inclination of floor surface - vehicle:
- Downward incline of floor surface maximum 3°, see graphic above (1)
- Upward incline of floor surface maximum 1°, see graphic above (2)
NOTE:
Setting up the ACC adjusting device (one-off task) comprises the following steps:
- Assembly of adjusting device
- Assembly of rail
- Basic setting of adjusting device on measurement area
Detailed setup and operating instructions are enclosed with every ACC adjusting device.
