REP-TAT-P-1100-26 Prepare the mobile table lift
Mobile table lift
- Work surface of the mobile table lift for mounting of the engine
- Work surface of the mobile table lift for mounting of the engine (adjustable length)
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Stage the mobile table lift 2 184 136
.
- Place the mounting element from the set of special tools 2 305 379
ready.
- Move the mobile table lift 2 184 136 under the engine and align it roughly.

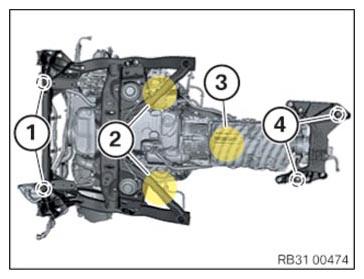

- Attach the mounting elements on the table lift so that lowering the engine and the automatic transmission will be stable:
- Attach the front axle support on the support points (1).
- Support the front axle support in the areas (2).
- Support the automatic transmission in the area (3).
- Attach the transmission bearing on the support points (4).
